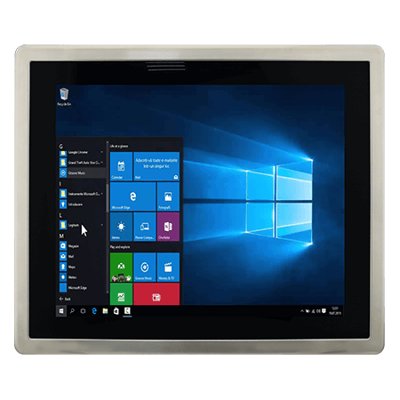

15" Intel® Atom® N2600 ATEX Panel PC
Vlastnosti:
- 15" 1024×768 , LCD Panel PC
- Intel® Atom® N2600 Processor, ATEX Panel PC
- Class1, Division 2 & ATEX Zone 2 device certified for hazardous area application
- Fanless, streamlined enclosure for highly efficient heat dissipation
- 5 wire Resistive Touch Screen (Explosion-proof)
- Stainless housing
- Rated for wide temperature use -20~50°C
System Specification
| Processor | Intel Atom N2600 1.6GHz |
| Chipset | Intel® NM10 |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB |
| Storage | 1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional) |
| Ethernet controller | BCM57780A1KMLG |
| Operating System | Windows 7 Embedded Systems (Optional) Linux Ubuntu 16.04 (Optional) |
Display
| Touch / Glass | Resistive Touch Screen Bonding With Panel (Explosion-Proof) |
| Resolution | 1024×768 |
| Size | 15 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 550 nits 1000 nits(Optional) |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
Mechanical
| Dimension | 396 x 310 x 49 mm |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Cut out | 365 x 270mm |
Environment
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 50°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
Certification
| Certification | CE, FCC UL60950-1, CSA C22.2 No. 60950-1-07, EN 62368-1, IEC60950-1 ATEX Zone 2 EX II 3 G Ex ic nA IIC Gc UL Class I, Div.2, Groups ABCD T4 ANSI/ISA12.12.01 CAN/CSA C22.2 No. 213-M1987 |
IO Ports
| Power Input | 1 x 9~36V DC, M12 Type connector |
| USB Port | 1x M12 type connector for 2 x USB2.0 |
| Serial Port | 1 x M12 connector for RS232/422/485 (Default RS232) |
| LAN | 1 x M12 type connecctor gor Giga LAN |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Power Adapter with M12 Connector Power Cord M12 Type Power Cable M12 Type RS232 Male Cable M12 Type USB Female Cable M12 Type LAN Cable RJ45 female-female converter USB Adapter (USB type A to type B) VESA screws |
