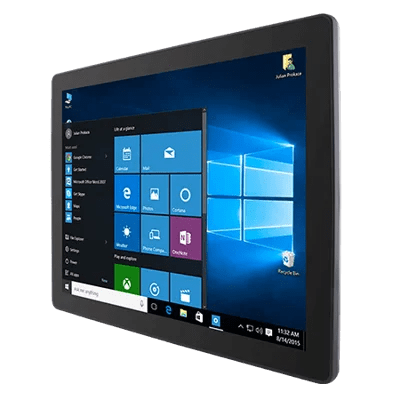

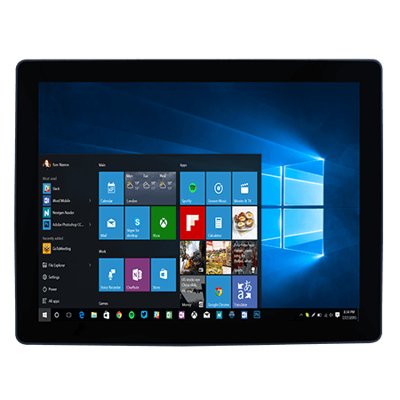

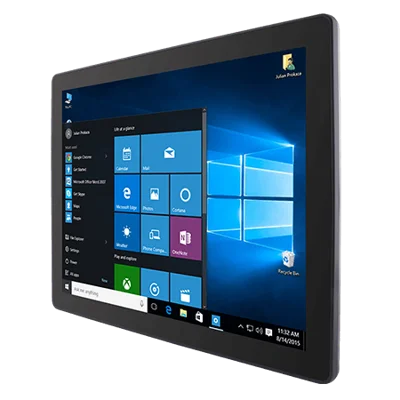

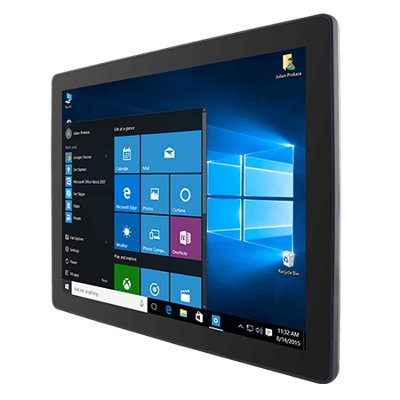

15″ IntelR CeleronR N2930 touch panel computers
Vlastnosti:
- 15” 1024 x 768 with PCAP touch panel computers
- Low power consumption with Intel® Celeron® N2930, 1.83 GHz
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Optional for Glass
- Support PoE
Display
| Resolution | 1024×768 |
| Size | 15 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 300 nits |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Anti-glare Coating (Optional) |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD up to 512GB. (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 352.5 x 276.7 x 45 mm |
| Weight | 2.41 kg |

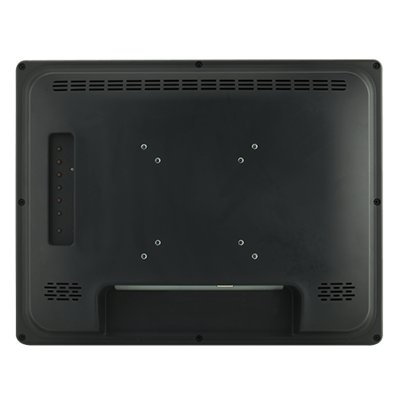

| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 1 x USB 3.0 1 x USB 2.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Audio | 2 x Speaker |
| LAN | 1 x RJ45-10/100/1000 Mbps 1 x RJ45-10/100/1000 Mbps with PoE |
| Indicator | Power LED Indicator |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord |
Power
| Power Rating | 12V DC in |
| POE | Power Device (PD), follows IEEE 802.3at (25 W) |
Control
| Button | 1 x Power Button 1 x Reset Button |
