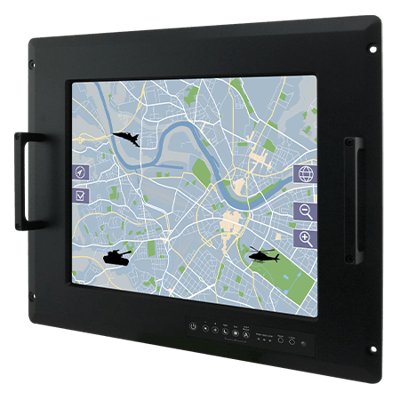

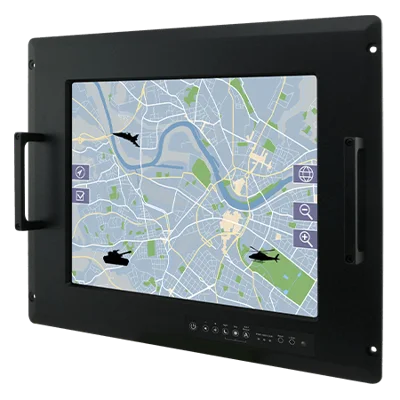

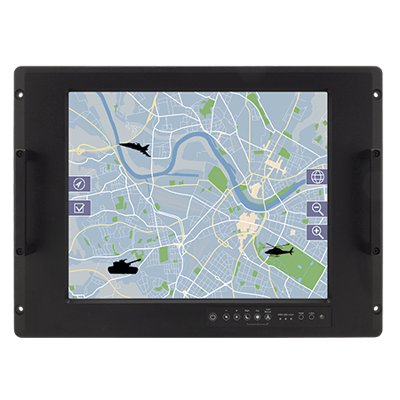

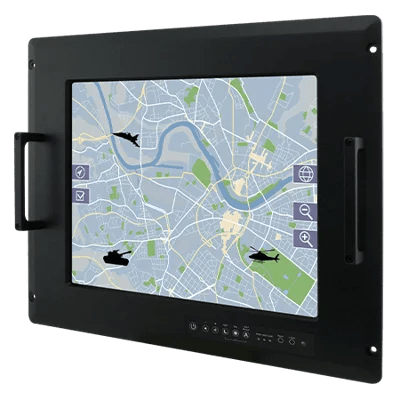

20.1″ IntelR CeleronR N2930 Defence Console Rack Panel PC
Vlastnosti:
- 20.1” LCD 1600 x 1200 Defence Console Rack Panel PC
- Intel® Celeron® N2930 2.16 GHz Processor
- Anti-Corrosion Housing / Fanless
- Compliant with MIL-STD-810G/F
- Flush Rack / Rack Mount Mechanical Design (9U)
- Convenient On-Screen Display Controls
- AC 110~240 V Power input default
- Isolation DC 9~36 V Power input (Optional)
- Built-in Light Sensor for auto brightness control
- Defence Grade Power Connector (MIL-DTL-38999/1)
Display
| Resolution | 1600×1200 |
| Size | 20.1 inches |
| Contrast Ratio | 1400:1 |
| Panel Brightness | 330.0 nits |
| View Angles | 85,85,85,85 |
| Active Area | 408×306 mm |
| Touch / Glass | AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
Compliance
| MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810G/H | Vibration Method 514.6 Humidity Method 507.5 Transit Drop Method516.6 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB2.0 1 x USB3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Video | 1 x HDMI (Optional) |
| LAN | 2 x RJ45 |
Mechanical
| Dimension | 482.6 x 399.3 x 75 mm |
| Mounting | VESA Mount/ Rack Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual (Hardcopy) CD-ROM with Driver Utility Power Cord MIL-DTL-38999/1 |
Power
| Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
| Button | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
