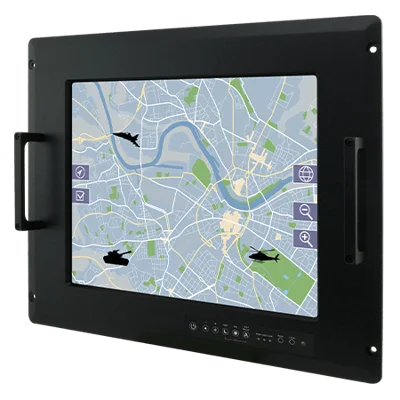

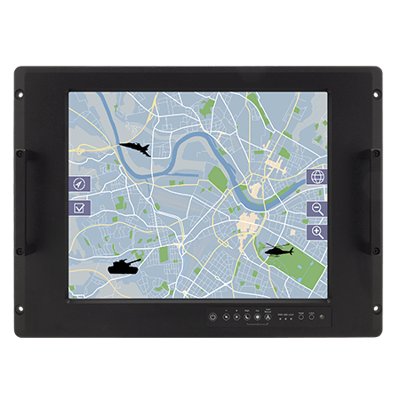

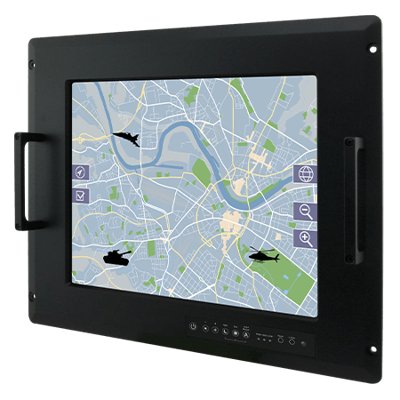

17″ IntelR Core i5-7200U Defence Console Rack Panel PC
Vlastnosti:
- 17” SXGA TFT LCD
- Intel® Core™ i5-7200U 2.5 GHz Processor
- Anti-Corrosion Housing / Fanless
- Compliant with MIL-STD-810G/F , MIL-STD-461E/F
- Flush Rack / Rack Mount Mechanical Design (8U)
- Convenient On-Screen Display Controls
- AC 110~240 V Power input default
- Isolation DC 9~36 V Power input (Optional)
- Built-in Light Sensor for auto brightness control
- Defence Grade Power Connector (MIL-DTL-38999/1)
Display
| Resolution | 1280×1024 |
| Size | 17.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350.0 nits |
| View Angles | 85,85,80,80 |
| Active Area | 337.920×270.336 mm |
| Touch / Glass | AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) |
System Specification
| Processor | Intel Core i5-7300U 2.6GHz (up to 3.5GHz) |
| Memory | 1 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C |
Compliance
| MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810G/H | Vibration Method 514.6 Humidity Method 507.5 Transit Drop Method516.6 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 (Optional) |
| Video | 1 x HDMI (Optional) |
| LAN | 2 x RJ45 |
Mechanical
| Dimension | 482 x 354 x 80 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual (Hardcopy) CD-ROM with Driver Utility Power Cord MIL-DTL-38999/1 |
Power
| Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
| Button | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
