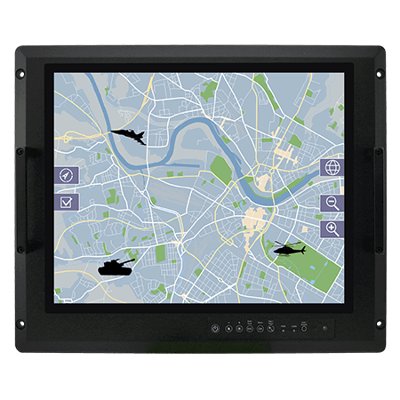

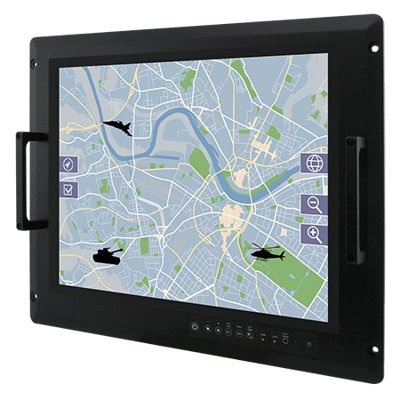

15" Intel® Core™ i5-1135G7 Defence Console Rack Panel PC
Vlastnosti:
- Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) Processor
- Anti-Corrosion Housing / Fanless
- Projective Touch
- Compliant with MIL-STD-810G/F , MIL-STD-461E/F
- Flush Rack / Rack Mount Mechanical Design (8U)
- Convenient On-Screen Display Controls
- AC 110~240 V Power input default
- Isolation DC 9~36 V Power input (Optional)
- Built-in Light Sensor for auto brightness control
Display
| Resolution | 1024×768 |
| Size | 15.0 inches |
| Contrast Ratio | 2500:1 |
| Panel Brightness | 500.0 nits |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
System Specification
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C |
Compliance
| MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810G | Vibration Method 514.6 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
| Certification | CE, FCC |
Accessory
| Accessory | 1 x Manual(Hardcopy) 1 x Driver CD 1 x Power Cord (MIL-DTL-38999/1) |
Mechanical
| Dimension | 402 x 321 x 70 mm |
| Mounting | Rack Mount/ VESA Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 2 x USB 3.2 Gen 1 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Video | 1 x HDMI (Optional) |
| LAN | 2 x RJ-45 |
Power
| Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
| Button | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
