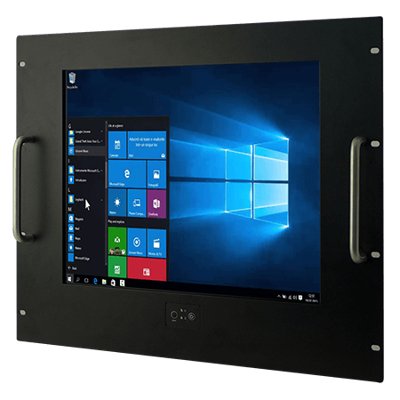

15" Intel® Celeron® N2930 Rack Mount Panel PC
Vlastnosti:
- 15" TFT LCD
- Intel® Celeron® Bay Trail-M N2930, 1.83 GHz
- SODIMM DDR3L 1600/1333, max. 8GB
- Intel® I210-AT GbE LAN
- 2 x RS232, 1 x RS232/422/485, 1 x USB 3.0, 3 x USB 2.0, 2 x PS/2, 2 x RJ45, 1 x VGA, 2 x Mini PCIe (1 for WiFi, 1 for 3G Module), 1 x eDP
Display
| Resolution | 1024×768 |
| Size | 15.0 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 300.0 nits |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 2 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB 256GB (Optional) 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Mechanical
| Dimension | 482 x 310 x 75.8 mm |
| Weight | 5.1 kg |
| Mounting | VESA Mount Rack Mount (7U) |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, Din4 pin connector |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A) 3 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 2 x RS232 1 x RS232 (Optional) |
| Video | 1 x VGA |
| Audio | Mic in Line in Line out |
| Expansion Port | 1 x mPCIe slot(for SSD) 1 x mPCIe slot(for Wi-Fi module) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| PS/2 | 2 x PS/2 |
| mini PCIe | 3 x Mini PCIE |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
| Power Rating | 12V DC (Lockable Power Jack) |
| Adapter | 12V 84W |
