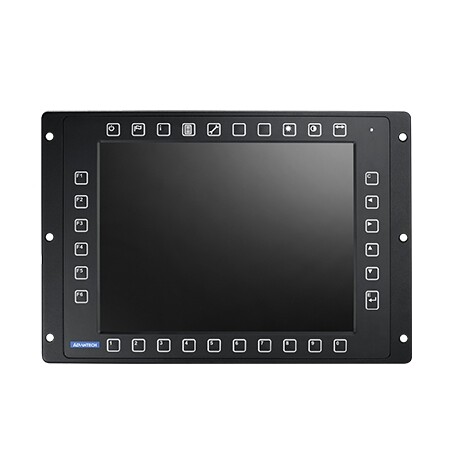

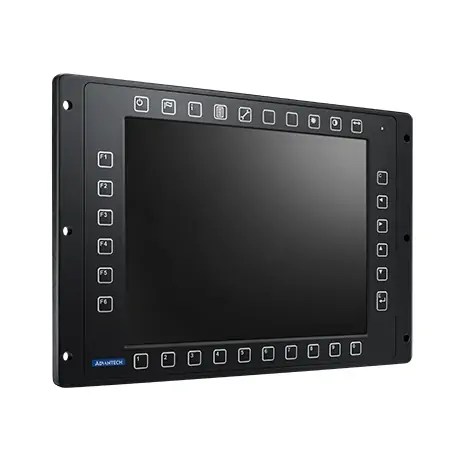

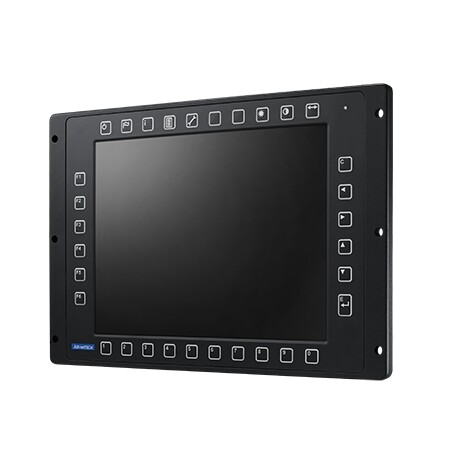

Advantech’s ITA-8100 touch panel PC is a fanless human machine interface (HMI) aimed at railway applications featuring a 10.4″ display with projective capacitive touchscreen.
Intel® Atom™ x7-E3950 quad-core processor
10.4″ LCD panel (500 nits or 1300 nits for ITA-8100B) with 1024 x 768 resolution
EN 50155 temperature class OT4+ST1: -40 ~ 70 °C/-40 ~ 158 °F (85 °C/185 °F for 10 minutes)
EN 50155 power input range: 24/48/72/110 VDC (±40%)
Anti-shock and vibration tolerance
IP65-rated front panel
UIC 612-01 keypad layout
Optional Expansion – MVB, CAN and GSM-R
No RED Certification
