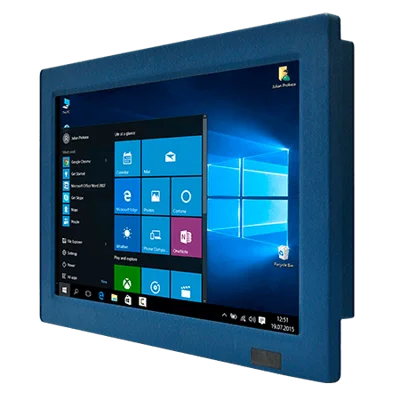

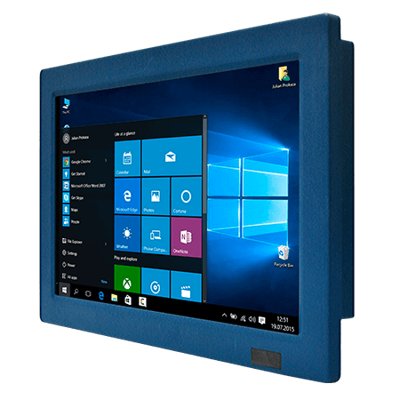

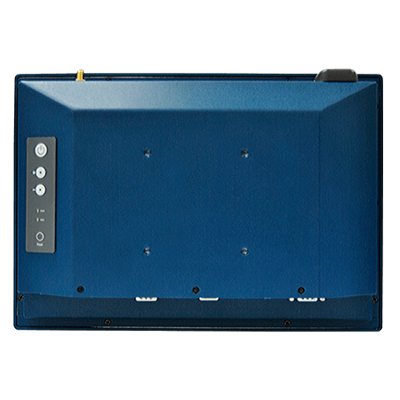

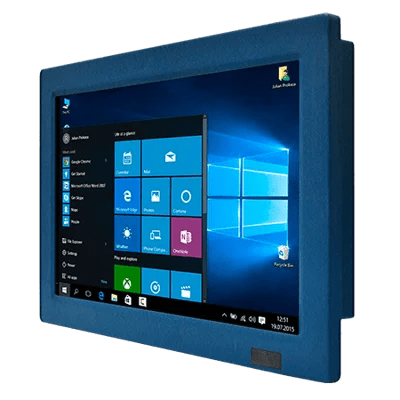

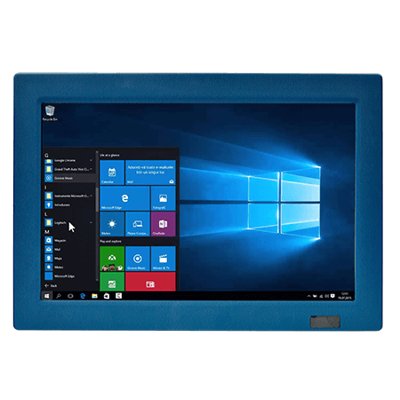

12.1? IntelR Core i5-1235U G-WIN Vehicle Mount Panel PC
Vlastnosti:
- Wide 12.1″ Panel, 1280 x 800 resolution, 400 nits (Optional for 1000 nits)
- 12th Gen Intel® Core™ i5-1235U processor
- -10 ~ +55°C Wide Range Operating Temperature
- Aluminum housing with anti-corrosion treatments. Fanless Design
- Wide Range 9 to 36V DC Input with isolation. Optional for Ignition On/Off delay
- Resistive Touch / Anti-Reflective Protection Glass (Optional)
- Front IP65 (Except I/O parts)
- Anti-Shock & Vibration compliant with MIL-STD-810F/G
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
Display
| Resolution | 1280×800 |
| Size | 12.1 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 400.0 nits |
| View Angles | 88,88,88,88 |
| Active Area | 261.12×163.2 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
| Dimension | 310 x 215 x 52.7 mm |
| Weight | 2.8 kg |
| Mounting | VESA mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button 1 x Brightness Up button 1 x Brightness Down button |
Accessory
| Accessory | Open Wire Cable with terminal block connector VESA screws |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
