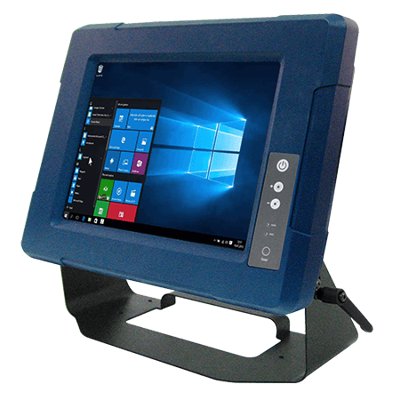

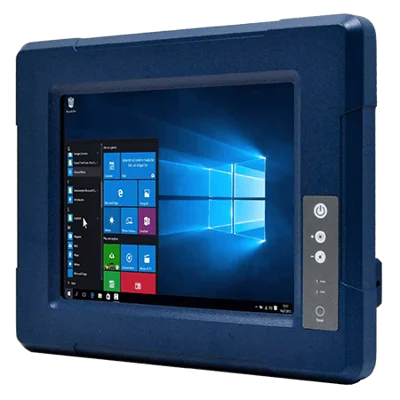

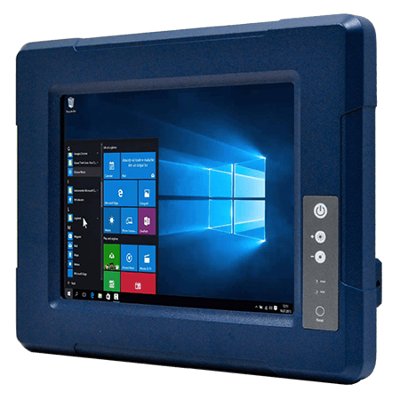

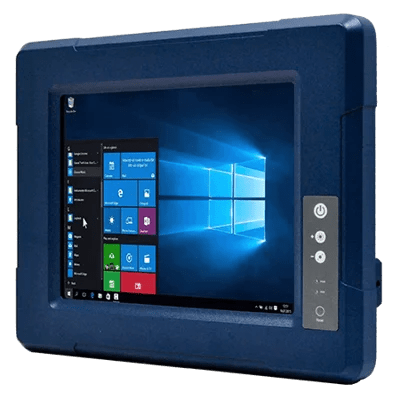

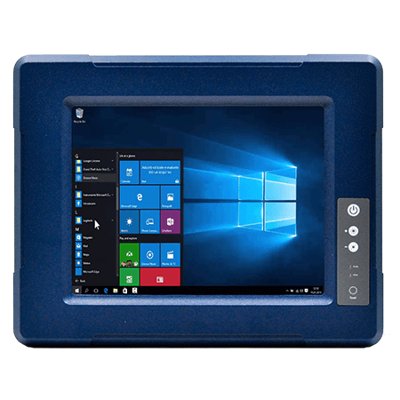

10.4″ IntelR Core i5 G-WIN Vehicle Mount Panel PC
Vlastnosti:
- 10.4″ 1024 x 768 panel
- Intel® Core™ i5-7200U Kaby Lake
- Aluminum housing with anti-corrosion treatments
- Front IP65 (Except I/O parts)
- Anti-Shock & Vibration compliant with MIL-STD-810F/G & IEC60068-2-27
System Specification
| Processor | Intel Core i5-7300U 2.6GHz (up to 3.5GHz) |
| Memory | 1 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Display
| Resolution | 1024×768 |
| Size | 10.4 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350.0 nits |
| View Angles | 88,88,88,88 |
| Active Area | 210.4×157.8 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
| Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
| Dimension | 315 x 250 x 67 mm |
| Weight | 2.9 kg |
| Mounting | VESA Mount Yoke Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x HDMI 1.4 (Optional) |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button 1 x Brightness Up button 1 x Brightness Down button |
Accessory
| Accessory | Open Wire Cable with terminal block connector VESA screws |
| Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC 84W Adapter with power cord (Optional) |
