EN 50155 12.1" Fanless Railway Touch Panel PC with Intel Atom® x7-E3950 Processor

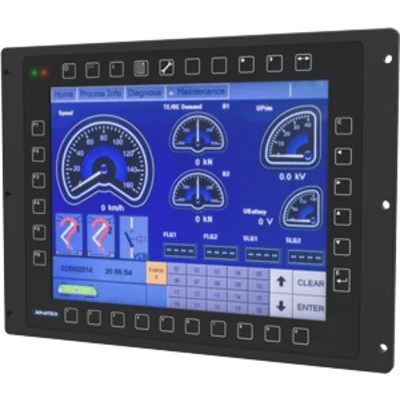

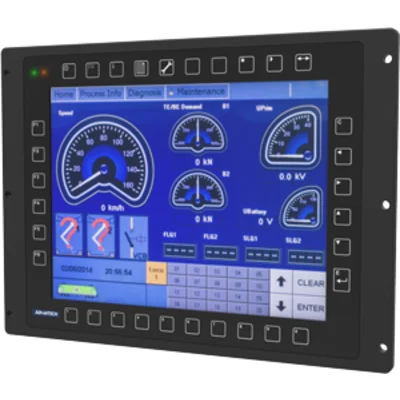

AdvantechÔÇÖs ITA-8120 touch panel PC is a fanless human machine interface (HMI) aimed at railway applications. ITA-8120 features a 12.1" high-brightness (500 nits) display with projective capacitive touchscreen. The panelÔÇÖs small, ultra-flat design offers space savings for installation in driver cabins, while the configuration flexibly allows it to be adjusted for specific applications and different train models. Designed to withstand operation in harsh environments, ITA-8120 supports a wide operating temperature range (-25 ~ 70 °C/-13 ~158 °F), complies with strict safety standards for EMC, shock, and vibration, and is certified to EN 50155 railway regulations.
Vlastnosti:
- Intel Atom® x7-E3950 quad-core processor
- 12.1" LCD panel (600 nits) with 1024 x 768 resolution
- EN 50155 temperature class OT4+ST1: -40 ~ 70 °C/-40 ~ 158 °F (85°C/185°F for 10 minutes)
- EN 50155 power input range: 24/48/72/110 VDC (±40%)
- Anti-shock and vibration tolerance
- IP65-rated front panel
- UIC 612-01 keypad layout
- Optional Expansion – MVB, CAN and GSM-R
- No RED Certification
