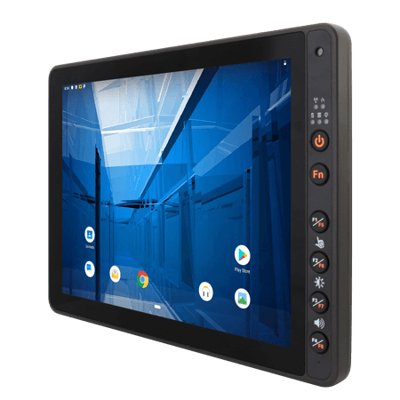

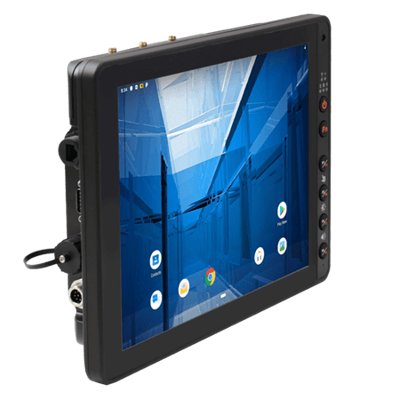

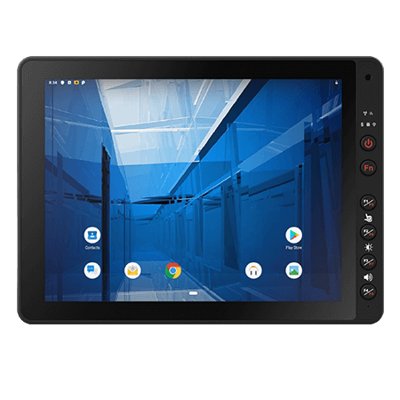

12.1inch Android Vehicle Computer with Qualcomm Snapdragon™ 660
Vlastnosti:
- Qualcomm Snapdragon™ 660 octacore, 2.2 GHz CPU
- 12.1” 1024 x 768 Panel with PCAP Touch, Android vehicle computer
- IP65 waterproof and dustproof
- Wide power input 10-60V DC with ignition
- Wide range operating temperature
- Support VESA Mount
Display
| Type | Projected Capacitive Multi Touch |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| Resolution | 1024×768 |
| Size | 12.1 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 400 nits 800 nits(Optional) |
| View Angles | 89,89,89,89 |
System Specification
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB |
| Storage | 32GB |
| Operating System | Android 9.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/GLONASS (Optional) |
| Sensors | G-Sensor, Temp. Sensor |
Camera
| Front Camera | 2MP Camera |
Mechanical
| Dimension | 307 x 225 x 57 mm |
| Weight | 2.5 kg |
| Mounting | RAM Mount/ VESA Mount |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 1 x USB 3.0 Type C (OTG) 1 x USB 2.0 Port |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot |
| Audio | 1 x Audio(Mic in & Line Out) either one with DIDO (Optional) |
| LAN | 1 x Gigabit LAN port PSE (IEEE 802.3at 30W) (Optional) |
| Indicator | 3 x LED Indicator (WLAN, UPS battery, Heater) |
| DIDO | 1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional) |
| CANBUS | 1 x CANBus (Optional) |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2, Enhanced ESD to ±8kV Direct & ±15kV Air |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Power Button, 5 x Function Button (Programmable Function Key Configured by Winset) |
Power
| Battery | 400mAh UPS Battery for 20 minutes backup (Optional) |
| Power Rating | 10V~60V with ignition control |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Accessory
| Accessory | 5M Power Cable with Fuse Kit 0.15M Power Converter Cable DC Jack Power Cable 84W Adapter with power cable Quick Start Guide |
| Optional Accessory | Stylus Kit + Screw 1.8M RS232 Cable 2M IP65 LAN Cable GPS & LTE 2M Combo Antenna(VM240) GPS & LTE 5M Combo Antenna (VM9C) GPS & LTE Magnetic Combo Antenna (VM10S) GPS Antenna WWAN Antenna 2M Waterproof USB Type-A to A Cable Cable Clamp Kit COM Port + CANBus Cable COM Port + DIDO Cable |
