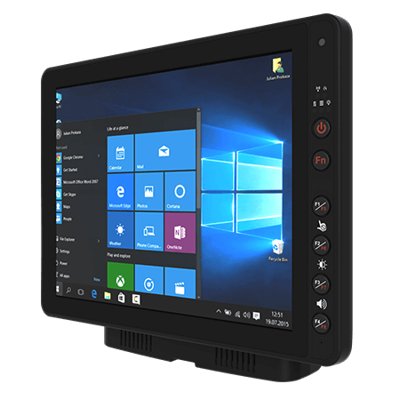

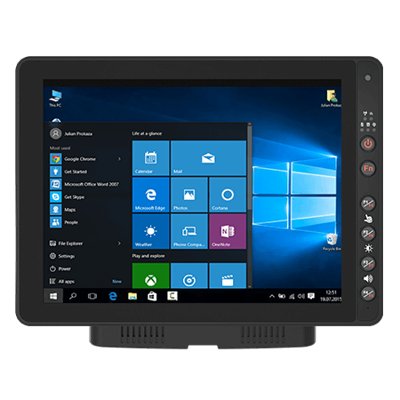

12.1" Forklift Mounted Computers with Intel® Elkhart lake x6425E
Vlastnosti:
- Intel® Elkhart lake x6425E Processor, Windows forklift mounted computers
- 12.1” 1024 x 768 Panel with PCAP Touch
- Field replaceable front panel to reduce service costs
- IP65 waterproof and dustproof
- Wide range operating temperature
Display
| Type | Projected Capacitive Multi Touch |
| Touch Mode | Support Hand, Stylus, Glove Mode |
| Resolution | 1024×768 |
| Size | 12.1 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 400 nits 800 nits(Optional) |
| View Angles | 89,89,89,89 |
System Specification
| Processor | Intel Atom x6425E 2GHz (up to 3GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB 256GB (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
Camera
| Front Camera | 2MP Camera |
Environment
| Operating Humidity | 5% to 90% RH, Non-Condensing |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2, enhanced ESD to ±12kV direct & ±15kV air |
Certification
| Certification | CE, FCC FCC (Electromagnetic Emissions), IC (ICES-003) UL60950-1, EN60950-1, PTCRB |
Control
| Button | 1 x Power Button, 5 x Function Button (Programmable Function Key Configured by Winset) |
IO Ports
| USB Port | 1 x USB Type-C(Tablet) 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot(Tablet) |
| Audio | 2 x Speaker(Docking) 1 x CANBus or 1 x Audio(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Indicator | 4 x LED Indicator (WLAN, UPS battery, HDD, Heater) |
| CANBUS | 1 x CANBUS / Audio |
Mechanical
| Dimension | Tablet: 307 x 225 x 41 mm Docking: 202 x 245 x 52 mm |
| Weight | Tablet 1.7 kg Docking 1.6 kg |
| Mounting | RAM Mount/ VESA Mount |
| Cooling System | Fanless Design |
| Docking Housing | Aluminum Alloy Housing |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Accessory
| Accessory | 5M Power Cable with Fuse Kit 0.3M USB Cable 0.15M Power Converter Cable DC Jack Power Cable 84W Adapter with power cable Cable Clamp Kit Wi-Fi Antenna x 2 Quick Start Guide External Antenna Fixing Bracket Dock + Latch Locking Key Stylus Kit + Screw |
| Optional Accessory | 1.8M RS232 Cable 0.3M Audio Cable 1.8M CAN BUS Cable 1.8M CAN BUS Open Wire Cable 2M IP65 LAN Cable GPS & LTE 2M Combo Antenna(VM240) GPS & LTE 5M Combo Antenna (VM9C) Magnetic Combo Antenna (VM10S) WWAN Antenna |
Power
| Battery | 7.6V UPS Battery (2S1P) Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control Tablet: 12V DC In |
| Consumption | 45W (Typical) |
