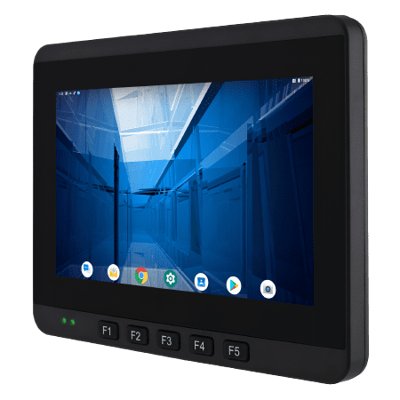

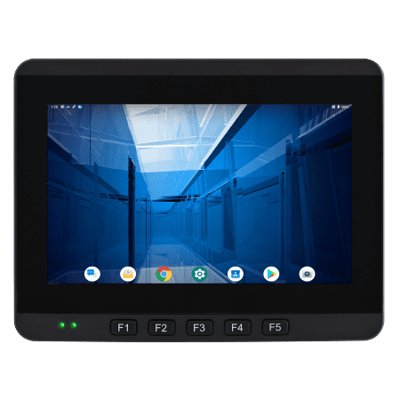

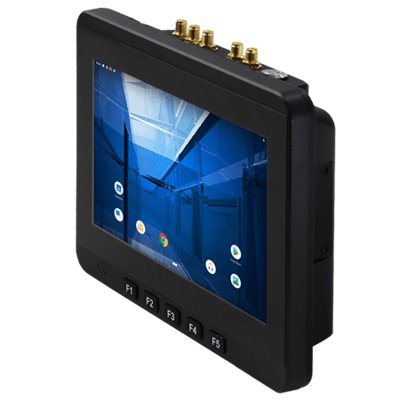

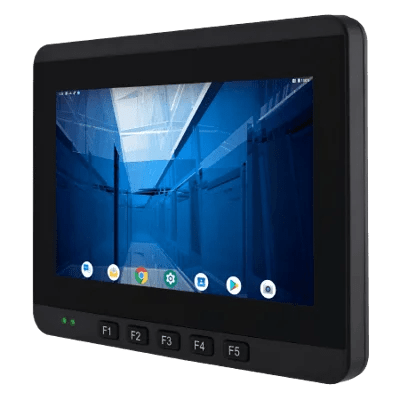

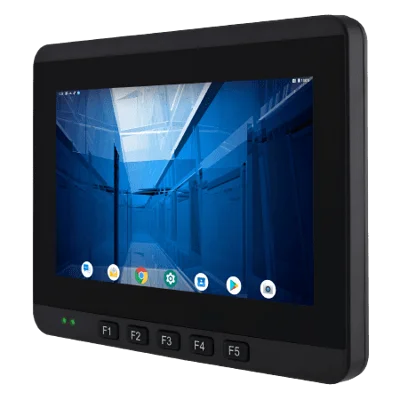

7″ ARM A78 + A55 Android Vehicle Mounted PC
Vlastnosti:
- 7” 1024 x 600 panel with projected capacitive MultiTouch screen
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
- M12 waterproof connectors , IP65 waterproof and dustproof
- Wide power input 9-24V DC with ignition
- Shock and vibration resistance according to MIL-STD-810H
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support |
| WWAN | 4G/LTE (Optional) |
| GPS | GPS/GLONASS (Optional with WWAN only) |
| RFID | NFC (Optional) |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 64 GB |
| Operating System | Android 13 Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Power Button, 5x Function Button (Programmable Function Key Configured by Winset) |

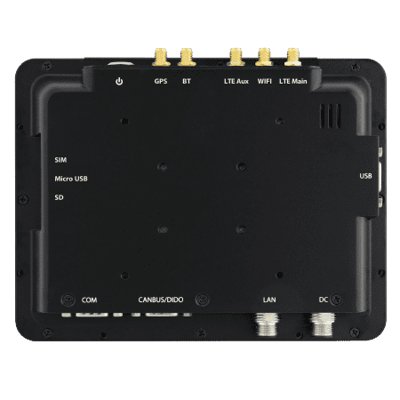

IO Ports
| USB Port | 2 x USB for DB9 1 X USB Type-C |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| SIM Card Slot | 1 x SIM Card Slot (Optional) |
| Audio | 1x Speaker |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
| Indicator | Power |
| DIDO | DIDO (5XDI ; 3XDO) |
| CANBUS | 1 x CANBus |
Mechanical
| Dimension | 190 x 146 x 40 mm |
| Weight | 1.25 kg |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Guide M12 LAN Cable, 1.8m RS232 Cable, 1.8m M12 Power Cable, 1.8m USB Cable, 0.3m CANBus Cable, 1.8m WLAN Antenna x1 Power Converter Cable Power Adapter |
| Optional Accessory | WWAN Antenna x 2 (Optional) Audio Cable, 0.3m (Optional) GPS Antenna, 3m (Optional) |
Power
| Power Rating | 9V~24V, with ignition control |
