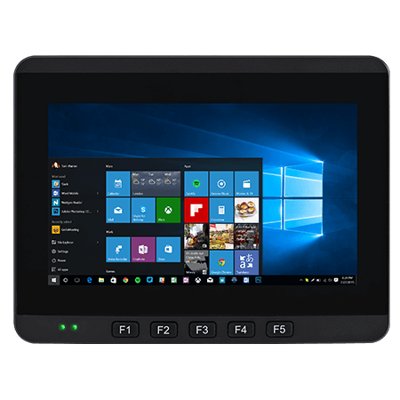

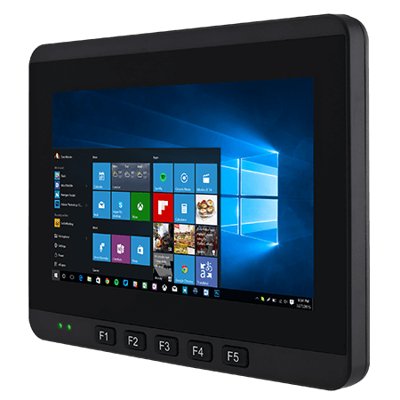

7inch Windows Vehicle Mounted Computer with Intel® Celeron® N6211
Vlastnosti:
- Intel® Celeron® N6211 Elkhart Lake, Windows Vehicle Mounted Computer
- 7” 1024 x 600 panel with projected capacitive Multi-Touch screen
- Wide power input 9-36V DC with ignition
- M12 waterproof connectors
- IP65 waterproof and dustproof
- Shock and vibration resistance according to MIL-STD-810G
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Celeron N6211 1.2GHz (up to 2.6GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65, Dustproof and Waterproof |
Certification
| Certification | CE, FCC |

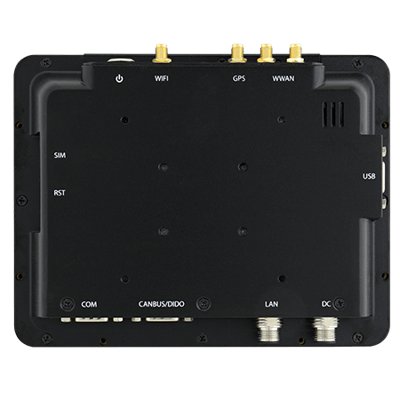

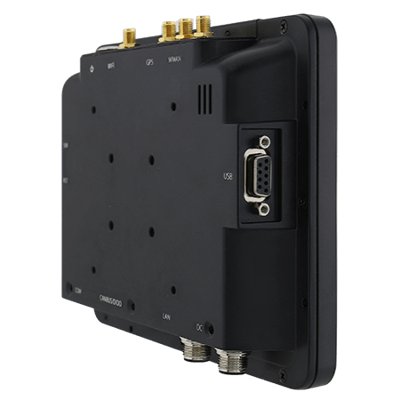

IO Ports
| USB Port | 2 x USB for DB9 1 x Micro USB |
| Serial Port | 1 x COM Port |
| SIM Card Slot | 1 x SIM Card Slot |
| Audio | 1x Speaker |
| LAN | 1 x Gigabit Ethernet LAN 10/100/100 Mbps (M12 type) |
| Front Control | 5 x Function Key |
| Indicator | Power, HD |
| DIDO | DIDO (5XDI ; 3XDO) |
| CANBUS | 2 x CANBUS |
Control
| Button | 1 x Power Button, 5x Function Button (Programmable Function Key Configured by Winset) |
Mechanical
| Dimension | 190 x 146 x 40 mm |
| Weight | 1.25 kg |
| Mounting | RAM Mount |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Guide M12 LAN Cable, 1.8m RS-232 Cable, 1.8m M12 Power Cable, 1.8m USB Cable, 0.3m CANBus and DIDO Cable, 1.8m WLAN Antenna Power Converter Cable Power Adapter |
| Optional Accessory | WWAN Antenna x 2 (Optional) Audio Cable, 0.3m (Optional) GPS Antenna, 3m (Optional) |
Power
| Power Rating | 9V-36V, with ignition control |
| Consumption | Max: 35W |
