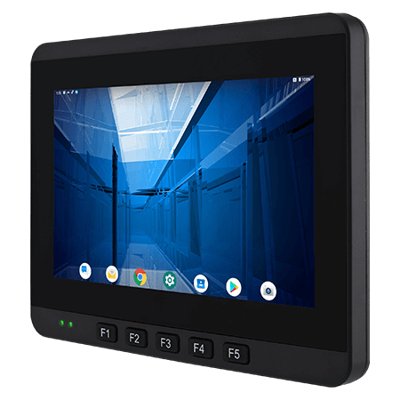

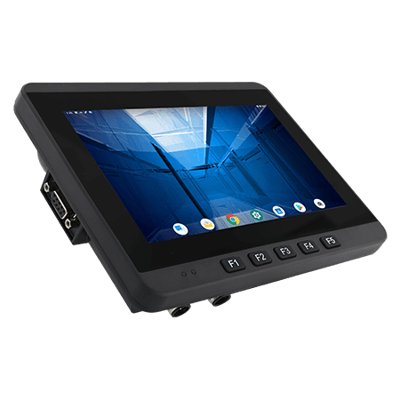

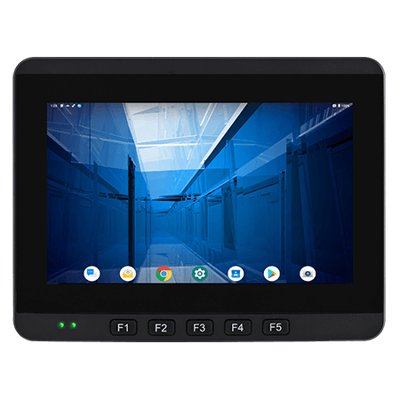

FM07A

7"Android Vehicle Mounted Computer with NXP i.MX6

Cena na dotaz

Dostupnost: Na objednávku (skladem u dodavatele)

Číslo zboží:GWX0000008 Produktové číslo: FM07A Kategorie:Bez klávesniceVýrobce:

Poptat produkt

7"Android Vehicle Mounted Computer with NXP i.MX6

Vlastnosti:

Display

Resolution	1024×600
Size	7.0 inches
Contrast Ratio	700:1
Panel Brightness	1000 nits
View Angles	75,75,75,70
Touch / Glass	Projected Capacitive Multi Touch Screen

System Specification

Processor	NXP i.MX6 Dual Core, 1.0GHz
Memory	1GB 2GB (Optional)
Storage	Onboard 16GB eMMC Onboard 32GB eMMC (Optional)
Operating System	Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional)

Environment

Operating Humidity	10% to 95% RH
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 60°C
Shock	MIL-STD-810G Method 516.6 Procedure I, 30 g for 18 ms
Vibration	MIL-STD-810G Method 514.6 Procedure I, 1.60/ 1.96/ 2.18 g rms for XYZ/ 5-500 Hz
IP rating	IP65, Dustproof and Waterproof

Certification

Certification

CE, FCC, E-mark

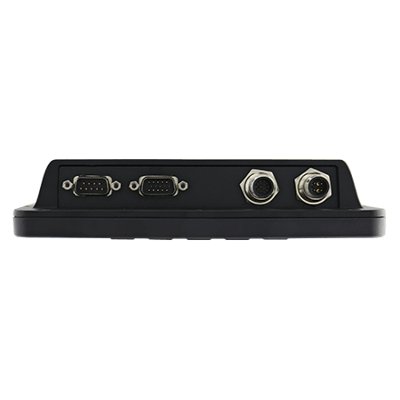

IO Ports

USB Port	2 x USB for DB9
Serial Port	1 x COM Port
SIM Card Slot	1 x SIM Card Slot
Audio	1x Speaker
LAN	1 x Gigabit Ethernet LAN 10/100/100 Mbps (M12 type)
Front Control	5 x Function Key
Indicator	Power, HD
DIDO	DIDO (5XDI ; 3XDO)
CANBUS	1 x CANBus

Control

Button

1 x Power Button, 5x Function Button
(Programmable Function Key Configured by Winset)

Mechanical

Accessory

Accessory	User Guide Driver CD M12 LAN Cable, 1.8m RS-232 Cable, 1.8m M12 Power Cable, 1.8m USB Cable, 0.3m CANBus Cable, 1.8m Wi-Fi Antenna Power Converter Cable Power Adapter
Optional Accessory	WWAN Antenna x 2 (Optional) Audio Cable, 0.3m (Optional) GPS Antenna, 3m (Optional)
