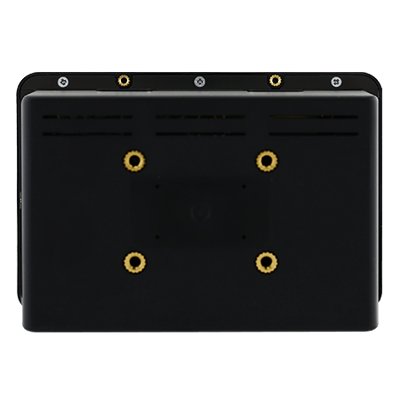

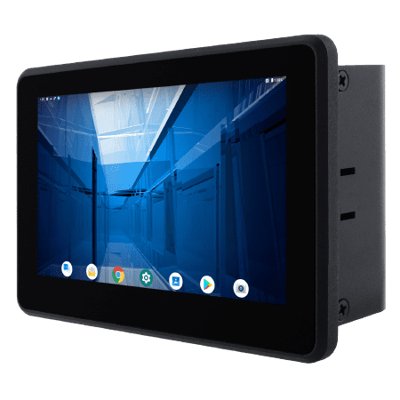

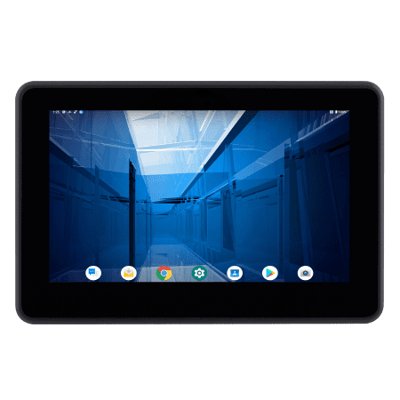

4.3" ARM A53 EL Series HMI Panel PC
Vlastnosti:
- 4.3” 480 x 272 Resolution with P-Cap Multi-touch screen
- ARM A53 Quad Core 2.0GHz CPU ARM HMI Panel PC
- Android 11
- 1 x USB , 1 x Micro USB, 1 x RS485 , 1 x RJ45 / LAN
- Support Android or Linux operating system
Display
| Resolution | 480×272 |
| Size | 4.3 inches |
| Contrast Ratio | 900:1 |
| Panel Brightness | 400.0 nits |
| View Angles | 80,60,80,80 |
| Active Area | 95.040×53.856 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu (Optional) |
Mechanical
| Dimension | 121 x 82 x 49 mm |
| Mounting | Panel mount |
| Enclosure | Plastic Housing |
| Cooling System | Fanless Design |
| Cut out | 110.5×74.5mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS485, 3pin Terminal block |
| LAN | 1 x LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for storage |
Accessory
| Accessory | Open Wire Cable with terminal block connector Mounting clips VESA screws |
| Optional Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable |
Power
| Power Rating | 12V~24V with isolation, 3Pin Terminal Block |
| Adapter | 12V 50W |
Control
| Button | 1 x Reset Button |
