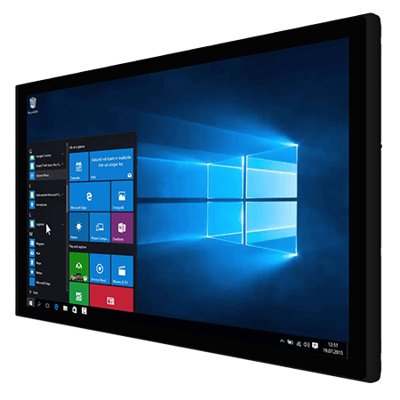

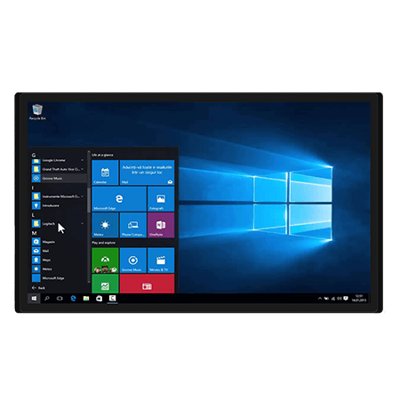

32" Intel® Core™ i5-1135G7 Standalone Panel PC HMI
Vlastnosti:
- 32” 1920 x 1080 with PCAP touchscreen
- High computing performance with 11th Generation Intel® Core™ i5-1135G7 2.4GHz (Optional Core i5-1145G7 2.6GHz)
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 2 x LAN, 1 x COM, 2 x USB 3.0, 1 x HDMI
Display
| Resolution | 1920×1080 |
| Size | 32.0 inches |
| Contrast Ratio | 4000:1 |
| Panel Brightness | 400.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 698.4×392.85 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 799 x 478 x 63.7 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fan Design |
IO Ports
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| LAN | 2 x RJ45-10/100/1000 Mbps |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/120W Power Cord |
Power
| Power Rating | 12V DC |
Control
| Button | 5 key: Power Up Down Left Right |
