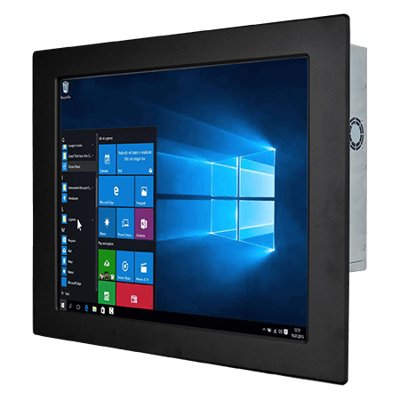

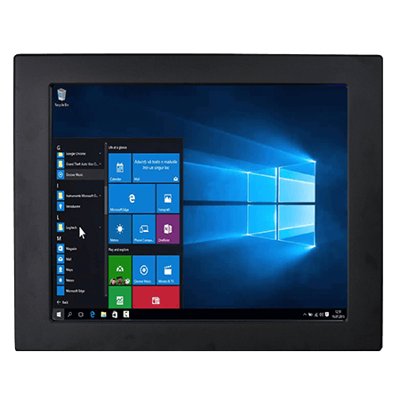

17" Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) Panel Mount Panel PC
Vlastnosti:
- 17” 1280 x 1024 Resolution
- Intel® 9th Generation Core™ i3/i5/i7 Processor (Coffee Lake Refresh)
- Flexible storage devices, one 2.5-inch HDD and one SSD
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
- 12 V DC Power input
- DP Support 4096 x 2304 @ 60 Hz
- HDMI Support 4096 x 2304 @ 24 Hz
Display
Resolution | 1280×1024 |
Size | 17.0 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350.0 nits |
View Angles | 85,85,80,80 |
Active Area | 337.920×270.336 mm |
Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
Processor | Intel Core i7-9700TE 1.8GHz (up to 3.8GHz) Intel Core i5-9500TE 2.2GHz (up to 3.6GHz) (Optional) Intel Core i3-9100TE 2.2GHz (up to 3.2GHz) (Optional) |
Chipset | Intel® B360(No vPRO) Intel® Q370(Support vPRO and NVMe) (Optional) |
Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2400 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional) 1 x M.2 2280 M-Key NVME SSD 128GB (Optional) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) 2 x SATA III for 2.5" SSD/HDD support RAID 0,1 (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
WLAN | Support (Optional) |
BT | Support (Optional) |
Mechanical
Dimension | 440 x 360 x 81 mm |
Weight | 5.9 kg |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fan design |
Cut out | 394 x 314 mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) |
Audio | 1 x Mic in 1 x Line out 2 x Speaker |
Expansion Port | 1 x M.2 2280/2242 M-Key Slot (for NVME SSD or SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) 1 x PCIe 3.0 (x16) slot |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
