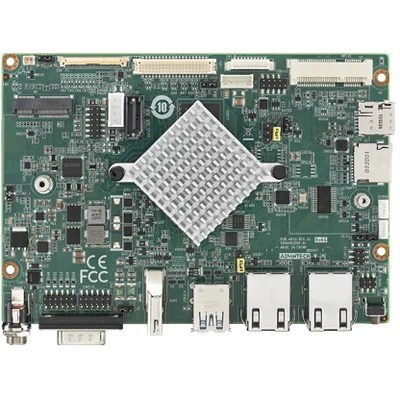

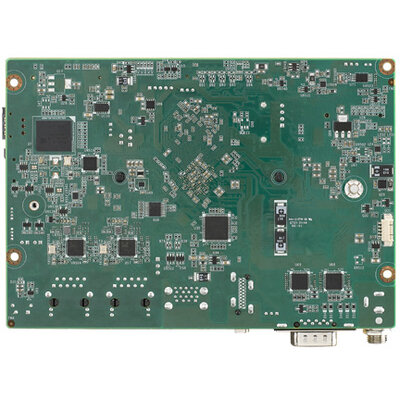

Rockchip Arm Cortex-A55 RK3568 3.5" SBC
RSB-4810 is an Arm-based 3.5" single board computer powered by Rockchip RK3568 SOC. It leverages 4 x Arm Cortex-A55 cores and a 1.0TOPs NPU. RSB-4810 offers a rich choice of I/Os, including USB3.0, PCIE3.0, SATA3.0, dual Ethernet, UART and CAN FD for various AIoT applications.
Vlastnosti:
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- Built-in NPU with processing performance of up to 1.0 TOPS
- Onboard 2/4GB LPDDR4 memory and 16/32GB eMMC
- Supports 1 x HDMI 2.0 4K, 1 x LVDS/MIPI-DSI, and 1 x eDP
- Supports 4K H.264/H.265 video decoder

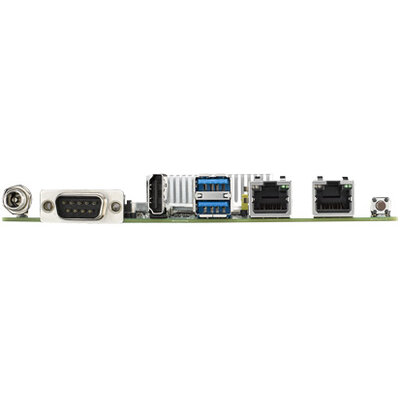

- Provides 2 x GbE, 1 x SATA 3.0, 6 x UART, 2 x USB 3.0, 2 x USB 2.0, 1 x USB OTG, and 2 x CAN
- Provides a M.2 E Key with PCIE 3.0/USB 2.0/SDIO/UART signal for Wi-Fi 5/6 Modules, and a MINI-PCIE with PCIE 3.0/USB 2.0 signal for LTE/5G Modules
- Supports Linux Debian10 and Android12
