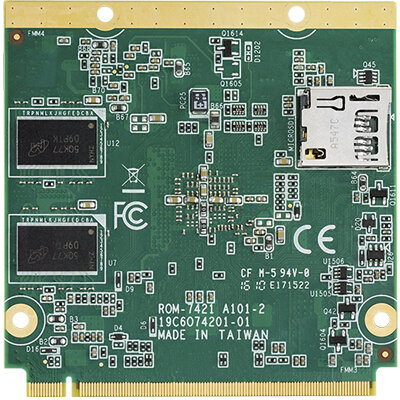

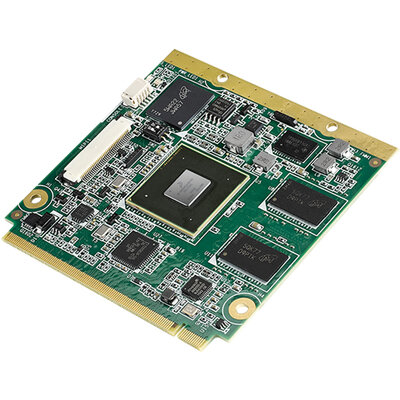

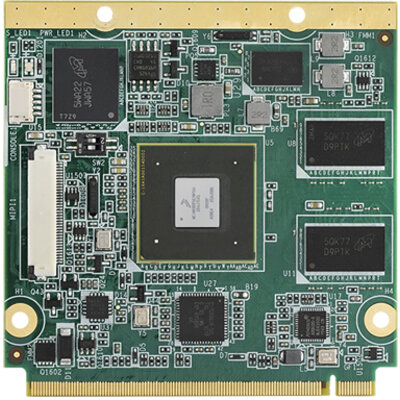

NXP i.MX6 Quad Plus Cortex®-A9 Qseven2.0 Computer-on-Module
ROM-7421 is an ARM-based Qseven 2.0 computer-on-module powered by NXP i.MX6 dual/quad plus/solo processor. With outstanding multimedia performance and excellent power saving technology, ROM-7421 is the best choice for your innovative computing platform.
Vlastnosti:
- NXP i.MX6 Solo/Dual Plus/Quad Plus High performance processor
- Onboad DDR3 1GB/2GB
- Onboard e.MMC NAND Flash 16GB
- Supports OpenGL ES 2.0 and OpenVG™ 1.1 hardware accelerators, full HD 1080p video codec
- HDMI,2 24bit LVDS
- 1 CAN, 2 4-wire UART, 2 I2C, 8 GPIO
- 4 USB, 1 SD/MMC, onboard micro-SD, 1 MIPI CSI
- 1 10/100/1000 MPbs Ethernet; 1 PCIe x 1, Gen 2
- Optional Thermal Solution
