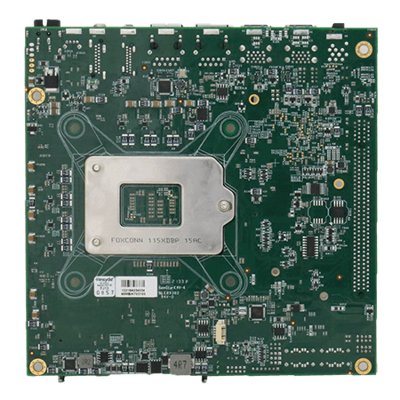

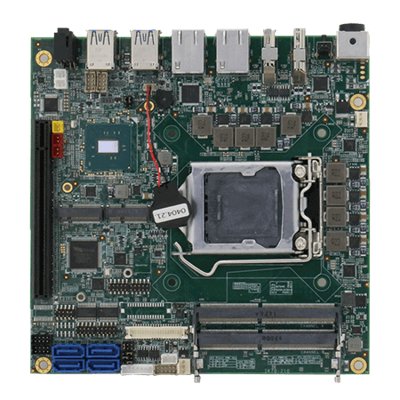

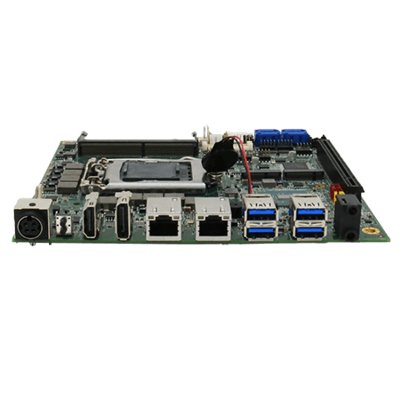

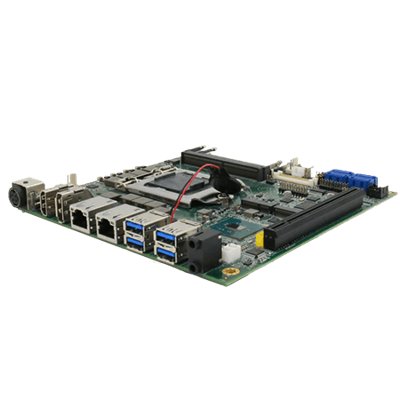

Intel® Core™ i7/i5/i3 Mini-ITX Embedded Board
Vlastnosti:
- Socket LGA1151 for Intel® Core™ i7/ i5/ i3 Processor, Mini ITX Embedded Board
- Mini ITX Form Factor ( 170 x 170 mm )
- DDR4 2400MHz SO-DIMM support up to 64GB
- 12V Single Voltage Power Input
- Multi display supports DP / HDMI (Optional) / LVDS / eDP panel interface
- Optional PCIE 3.0 x 16 slot
System Specification
Processor | Intel Core i7-7700T 2.9 GHz (up to 3.8GHz) Intel Core i5-7500T 2.7GHz (up to 3.3GHz) (Optional) Intel Core i3-7100T 3.4GHz (Optional) |
Chipset | Intel® C236 |
Memory | 1 x SO-DIMM, DDR4 2166 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2166 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD Up to 512GB. (Optional) 1 x 2.5" SSD / HDD (Optional) 2 x SATA III support RAID 0,1 (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) |
Audio | 1 x Mic in 1 x Line out |
Expansion Port | 1 x M.2 2242 Key B slot for SSD 1 x M.2 2230 Key E slot for WiFi (Optional) |
LAN | 2 x Giga LAN RJ45 Connector |
Internal IO Ports
Power input | 1 x 4pin(2×2) for 12V DC in 1 x 6pin(1×6) for 12V DC in |
Power output | 2 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
USB | 2 x 8pin(2×4) for 4 x USB 2.0 |
Serial port | 1 x 10pin(2×5) for RS232 1 x 10pin(2×5) for RS232/422/485 1 x RS232 & 1 x RS232/422/485 (Optional) |
Display | 1 x 40pin DF13 connector for LVDS 1 x 30pin DF13 connector for eDP (Optional) |
Backlight | 1 x 7pin(1×7) for panel backlight |
SATA | 2 x SATA III 1 x 8pin(2×4) for SATA power 2 x SATA III & 1 x SATA power (Optional) |
DIDO | 1 x 10pin(2×5) for Digital input/output |
VR | 1 x 3pin(1×3) for Digital panel backlight brightness control 1 x 3pin(1×3) VR/Software brightness switch jumper 1 x 3pin(1×3) PWM/DC brightness switch jumper 1 x 3pin(1×3) 3.3V/5V PWM Level switch jumper |
Fan | 2 x 3pin(1×3) for Fan |
OSD | 1 x 10pin(2×5) for OSD control |
Speaker | 2 x 2pin(1×2) for Speaker |
Backup battery | 1 x 2pin(1×2) for RTC battery |
BIOS debug | 1 x 10pin(2×5) for LPC debug |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 170 x 170 mm |
Environment
Operating Humidity | 10% to 95% RH, Non-Condensing |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 70°C |
Accessory
Optional Accessory | Driver CD & Manual (Optional) Adapter (Optional) |
