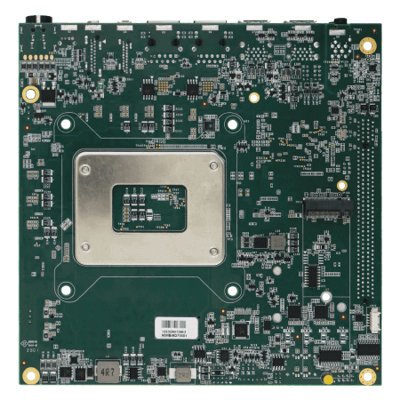

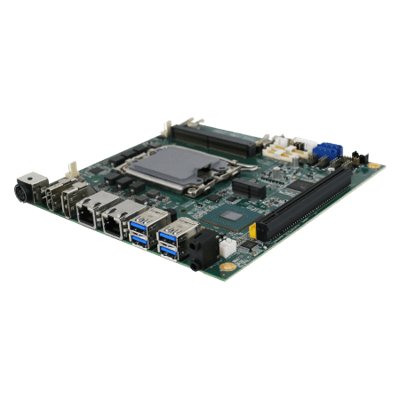

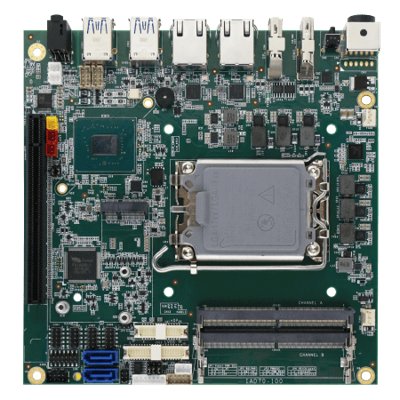

Intel® Core™ Alder Lake LGA 1700 Mini-ITX Embedded SBC
Vlastnosti:
- 12th Gen Intel® Core™ Alder Lake S Socket LGA 1700 i9 / i7/ i5 / i3 processor
- 2 x SODIMM, DDR5 4800MHz, support up to 64GB (Max. 32GB for each slot)
- Multi display supports DP 1.4a / HDMI 2.0b (Optional)
- 2 x Intel® Ethernet Controller
- 12 V Single Voltage Power Input
- Mini ITX Form Factor (170 x 170 mm)
System Specification
Processor | Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional) |
Chipset | Intel® Q670 Intel® H610 (Optional) Intel® R680E (Optional) |
Memory | 2 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional) |
Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 2 x SATA III (Only R680E/Q670 version support)(RAID support) (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |

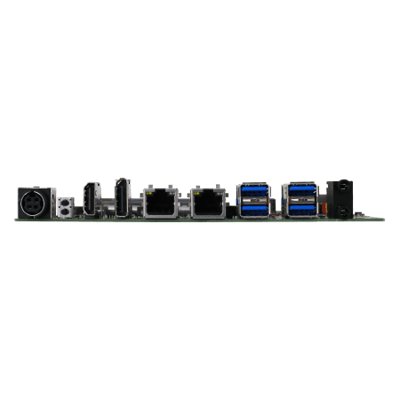

IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) (R680E/Q670 version) 4 x USB 3.2 Gen1x1 (5Gbps, TypeA) (H610 version) |
Video | 1 x DP1.4a DP++ , Max resolution up to 4096×2160@60Hz 1 x HDMI 2.0b , Max resolution up to 4096×2160@60Hz (Optional) |
Audio | Mic in Line out |
Expansion Port | 1 x M.2 (Key E) with PCIe x1, USB 2.0 for wireless 1 x M.2 (Key M, 2242/2280) with PCIe or SATAIII for SSD 1 x PCIe 5.0 (x16) slot |
LAN | 2 x Giga LAN RJ45 Connector |
Internal IO Ports
Power input | 1 x 6pin(1×6) for 12V DC in |
Power output | 2 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
USB | 2 x 8pin(2×4) for 4 x USB2.0 |
Serial port | 2 x 10pin(2×5) for RS232 2 x 10pin(2×5) for RS232/422/485 |
Display | 1 x 40pin DF13 connector for LVDS 1 x 30pin DF13 connector for eDP 1.4a , Max resolution up to 1920 x 1200@60Hz (Optional) |
Backlight | 1 x 7pin(1×7) for panel backlight |
SATA | 2 x SATA III 1 x 8pin(2×4) for SATA power (Only R680E/Q670 version support) |
DIDO | 1 x 14pin(2×7) for Digital input/output |
VR | 1 x 3pin(1×3) for Digital panel backlight brightness control 1 x 3pin(1×3) VR/Software brightness switch jumper 1 x 3pin(1×3) PWM/DC brightness switch jumper 1 x 3pin(1×3) 3.3V/5V PWM Level switch jumper |
Fan | 1 x 3pin(1×3) for CPU Fan 1 x 3pin(1×3) for System Fan |
OSD | 1 x 10pin(2×5) for OSD control |
Speaker | 2 x 2pin(1×2) for Speaker |
Backup battery | 1 x RTC battery holder |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 170 x 170 mm |
Environment
Operating Humidity | 10% to 95% RH, Non-Condensing |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 70°C |
Accessory
Optional Accessory | Driver CD & Manual (Optional) Adapter (Optional) |
