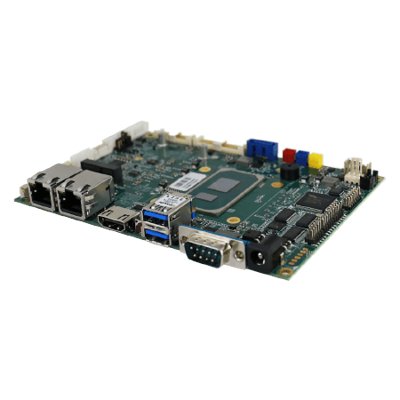

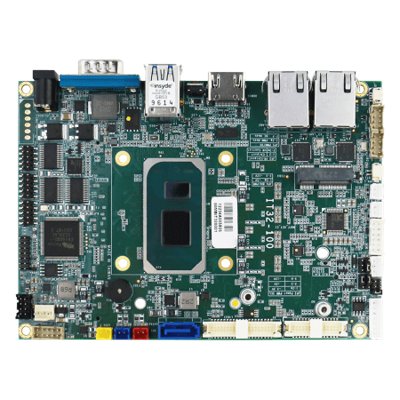

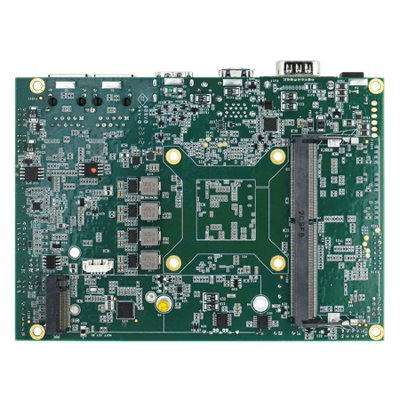

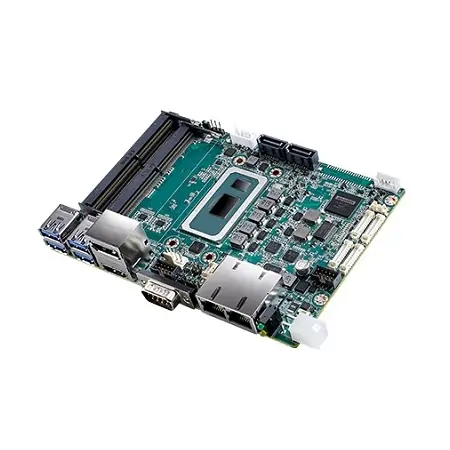

IntelR Core i5 x86 Embedded Motherboard
Vlastnosti:
- 3.5” Form Factor (146mm x 102mm), x86 Embedded motherboard
- Intel® 11th Generation Core™ i5 processor
- Support UHD 4 lans eDP Panel
- 1 x SO-DIMM, DDR4 3200 MHz (Max. 32GB)
- Integrated Dual Gigabit Ethernet
- 1 x M.2 Key M Slot for M.2 2242 SATA III SSD Optional M.2 2280 NVME SSD
- 12 V Single Voltage Power Input
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5″ SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
Internal IO Ports
| Power input | 1 x 6pin(1×6) for 12V DC in |
| Power output | 1 x 2pin(1×2) blue wafer for 3.3V DC out 1 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2×4) for 4 x USB 2.0 |
| Serial port | 3 x 10pin(2×5) for RS232 |
| Display | 1 x 40pin DF13 connector for LVDS 1 x 30pin DF13 connector for eDP (Optional) |
| Backlight | 1 x 7pin(1×7) for panel backlight |
| SATA | 1 x SATA III 1 x 8pin(2×4) for SATA power |
| DIDO | 1 x 14pin(2×7) for Digital input/output |
| VR | 1 x 3pin(1×3) for Digital panel backlight brightness control 1 x 3pin(1×3) VR/Software brightness switch jumper 1 x 3pin(1×3) PWM/DC brightness switch jumper 1 x 3pin(1×3) 3.3V/5V PWM Level switch jumper |
| Fan | 1 x 3pin(1×3) for CPU Fan |
| OSD | 1 x 10pin(2×5) for OSD control |
| Speaker | 2 x 2pin(1×2) for Speaker |
| Backup battery | 1 x 2pin(1×2) for RTC battery |
| Audio | 1 x 12pin(2×6) for Line in/Line out/ Mic in |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 146 x 102 mm |
Environment
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
Accessory
| Accessory | 1 x Installation Guide |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional) 1 x SATA Power cable (94HE08Z150E0) (Optional) 1 x COM cable (94G309E100E1) (Optional) 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional) 1 x 12V 120W Adapter (922D120W12V5) (Optional) 1 x Power cord (Varies by country) (Optional) 1 x CPU Heatspreader (98K000A000N3) (Optional) 1 x Membrane (98K000A000N1) (Optional) 2 x Speaker (612620000007) (Optional) |
Power
| Power Rating | 12V DC |
