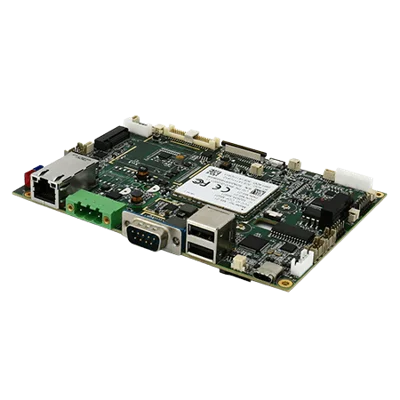

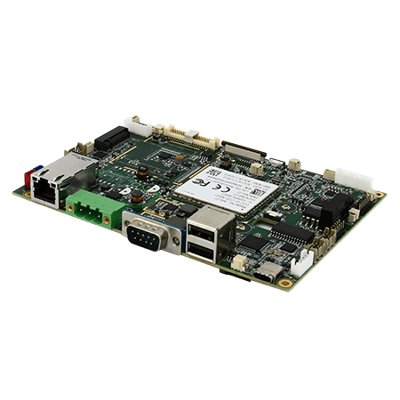

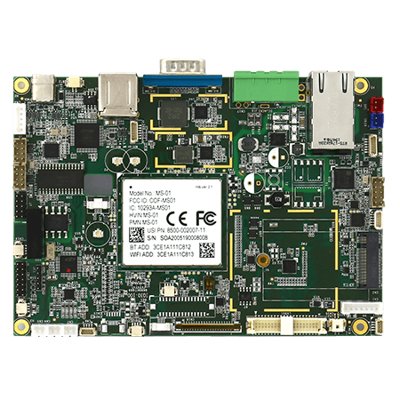

Qualcomm Single Board Computer
Vlastnosti:
- 3.5” Form Factor (146 mm x 102 mm)
- Qualcomm® Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Integrated LVDS, eDP (Optional)
- 3GB LPDDR4 (Optional 4GB), 32GB eMMC
- Rear IO Supports 1 x COM, 2 x USB 2.0, 1 x USB Type C, 1 x LAN ,1 x SD slot
- Qualcomm single board computer
System Specification
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 9.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
IO Ports
| Power Input | 1 x 3-Pin Terminal Block, 12V DC |
| USB Port | 2 x USB 2.0 Type A 1 x USB Type C |
| Serial Port | 1 x RS232/422/485 |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Video | 1 x Micro HDMI (Optional) |
| LAN | 1 x RJ45, Optional PoE(PD, 802.3AT) |
Internal IO Ports
| Power output | 1 x 5V output (2 Pin Waffer) 1x 3.3V output (2 Pin Waffer) |
| USB | 3 x USB 2.0 (2×4 Waffer/per) 2 x USB 2.0 Touch (FFC Connector) |
| UART | 2 x Light BAR / 1×4-pin with UART 1 x UART (TX, RX, 3.3V, GND) |
| Serial port | 1 x RS232/422/485 (2×5 Waffer) 1 x RS232/422/485 (2×5 Waffer, 5V) (Optional) |
| Display | 1 x LVDS (DF13/FPC) (Optional) 1 x EDP (15 Pin Waffer) (Optional) |
| Backlight | 2 x Backlight waffer(5V/3.3V) |
| WWAN Module Connector | 1 x M.2 (PCIe Signal With USB) |
| DIDO | 1 x 14 Pin DIDO (6 DI, 6 DO, GND, 5V) |
| OSD | 1 x GPIO for 5 key OSD (6 Pin Waffer) 1 x GPIO For Membrane OSD (2×5 Waffer) |
| Speaker | 2 x Speaker (L/R, 2 Pin Waffer) |
| Backup battery | 1 x RTC Battery |
| Microphone | 2 x DMIC (4 Pin Waffer/Per) 1 x Analog MIC (2 Pin Waffer) |
| BIOS debug | 1 x Debug Port (6 Pin Waffer) |
| CANBus | 1 x 4 Pin Waffer CANBus With Isolation (CANH, CANL,5V) (Optional) |
| I2C | 1 x I2C |
| ANT | 3 x IPEX connector (Wi-Fi, BT, NFC) |
| Switch | 1 x SW1 (SW Burnning Switch) |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 146 x 102 mm |
Environment
| Operating Humidity | 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 65°C |
Accessory
| Accessory | Manual |
