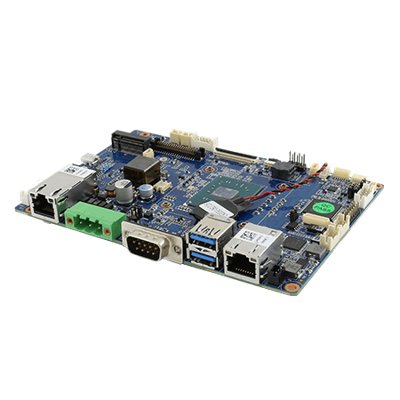

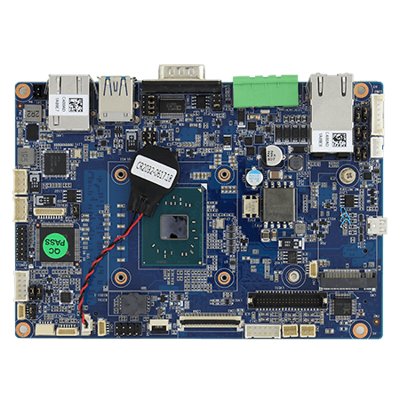

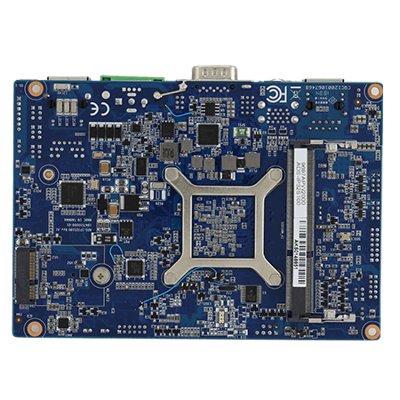

x86 SBC, Intel® Pentium® N4200 Single Board Computer
Vlastnosti:
- x86 SBC, 3.5” Form Factor (146mm x 102mm / 5.7 x 4 inches)
- Intel® Pentium® Apollo Lake N4200 Processor , single board computer x86
- System memory DDR3L 1600 / 1866 MHz, SO-DIMM Max 8GB
- Intel® HD Graphics Engine
- 2 x Giga LAN, one with PoE function
- 2 x USB 3.0, 1 x RS232/422/485, 1 x Micro HDMI (Optional)
System Specification
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 B-Key 2242 SSD 128GB M.2 B-Key 2242 SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
IO Ports
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x Micro HDMI (Optional) |
| LAN | 2 x Giga LAN RJ45 Connector,one with PoE(PD, 802.3 at)(Optional) |
Internal IO Ports
| Power input | 1 x 3pin Terminal Block |
| Power output | 1 x 2pin(1×2) red wafer for 5V DC out |
| USB | 2 x 8pin(2×4) for 4 x USB 2.0 1 x FPC connector(CN8) for touch screen |
| UART | 1 x 6pin(1×6) for UART |
| Serial port | 1 x 10pin(2×5) for RS232 |
| Display | 1 x 40pin DF13 connector for LVDS.Co-lay for eDP 1 x 40pin FPC connector Co-lay for LVDS(CON3) (Optional) |
| Backlight | 1 x 7pin(1×7) for panel backlight |
| SATA | 1 x SATA III 1 x 8pin(2×4) for SATA power |
| DIDO | 1 x 14pin(2×7) for Digital input/output |
| VR | 1 x 5pin(1×5) MCU debug port |
| OSD | 1 x 10pin(2×5) for OSD control |
| Speaker | 2 x 2pin(1×2) for Speaker |
| Backup battery | 1 x 2pin(1×2) for RTC battery |
| Audio | 1 x 12pin(2×6) for Line in/Line out/ Mic in |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 146 x 102 mm |
Environment
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
