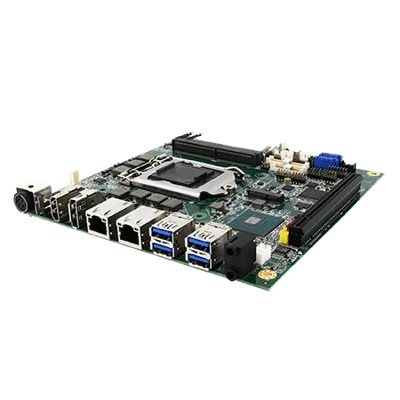

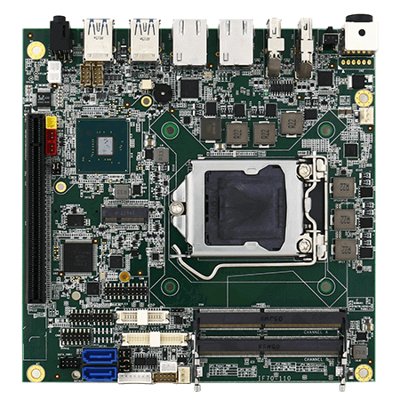

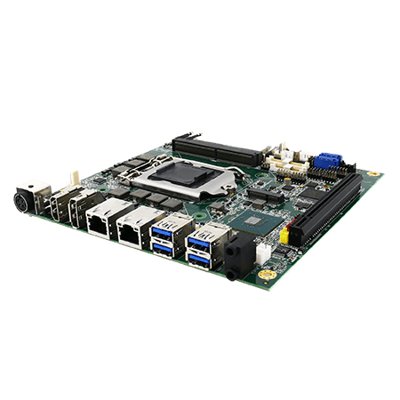

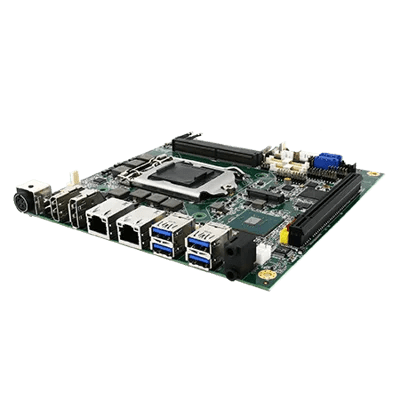

IntelR Core i7/i5/i3 Mini-ITX Embedded Board
Vlastnosti:
- Socket LGA1151 for Intel® Core™ i7 / i5 / i3 Processor
- Mini ITX Form Factor ( 170 x 170 mm )
- DDR4 2666 MHz SO-DIMM support up to 32 GB
- 12 V Single Voltage Power Input
- Multi display supports DP / HDMI (Optional) / LVDS / eDP panel interface
- Optional PCIE 3.0 x 16 slot
System Specification
| Processor | Intel Core i7-9700TE 1.8GHz (up to 3.8GHz) Intel Core i5-9500TE 2.2GHz (up to 3.6GHz) (Optional) Intel Core i3-9100TE 2.2GHz (up to 3.2GHz) (Optional) |
| Chipset | Intel® B360(No vPRO) Intel® Q370(Support vPRO and NVMe) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2400 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional) 1 x M.2 2280 M-Key NVME SSD 128GB (Optional) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5″ SSD/HDD support RAID 0,1 (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
IO Ports
| Power Input | 1 x 12V DC, Din4 pin connector |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) |
| Audio | Mic in Line out |
| Expansion Port | 1 x M.2 2280/2242 M-Key Slot (for NVME SSD or SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fimodule) 1 x PCIe 3.0 (x16) slot |
| LAN | 2 x Giga LAN RJ45 Connector |
Internal IO Ports
| Power input | 1 x 4pin(2×2) for 12V DC in 1 x 6pin(1×6) for 12V DC in |
| Power output | 2 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2×4) for 4 x USB 3.2 Gen1x1 2 x 8pin(2×4) for 2 x USB2.0 |
| Serial port | 2 x 10pin(2×5) for RS232 2 x 10pin(2×5) for RS232/422/485 |
| Display | 1 x 40pin DF13 connector for LVDS 1 x 30pin DF13 connector for eDP (Optional) |
| Backlight | 1 x 7pin(1×7) for panel backlight |
| SATA | 2 x SATA III 1 x 8pin(2×4) for SATA power |
| DIDO | 1 x 14pin(2×7) for Digital input/output |
| VR | 1 x 3pin(1×3) for Digital panel backlight brightness control 1 x 3pin(1×3) VR/Software brightness switch jumper 1 x 3pin(1×3) PWM/DC brightness switch jumper 1 x 3pin(1×3) 3.3V/5V PWM Level switch jumper |
| Fan | 1 x 3pin(1×3) for CPU Fan 1 x 3pin(1×3) for System Fan |
| OSD | 1 x 10pin(2×5) for OSD control |
| Speaker | 2 x 2pin(1×2) for Speaker |
| Backup battery | 1 x RTC battery holder |
| BIOS debug | 1 x 10pin(2×5) for LPC debug |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 170 x 170 mm |
Environment
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
Accessory
| Accessory | 1 x Installation Guide |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional) 1 x SATA Power cable (94HE08Z150E0) (Optional) 2 x COM cable (94G309E100E1) (Optional) 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional) 1 x 12V 120W Adapter (922D120W12V4) (Optional) 1 x Power cord (Varies by country) (Optional) 1 x CPU Heatspreader with Fan (98K000A000N4) (Optional) 1 x Membrane (98K000A000N1) (Optional) 2 x Speaker (612620000007) (Optional) |
Power
| Power Rating | 12V DC |
