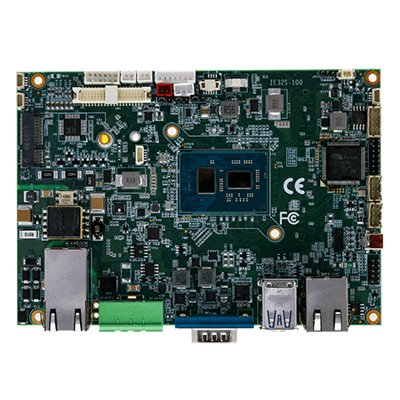

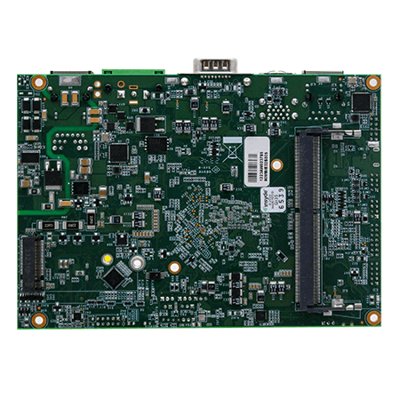

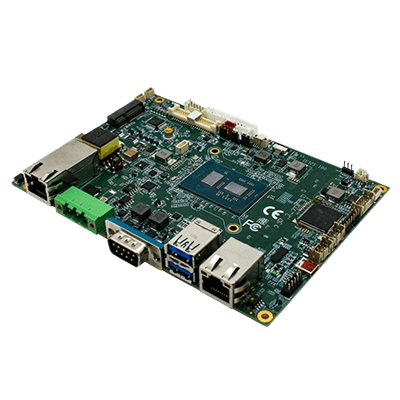

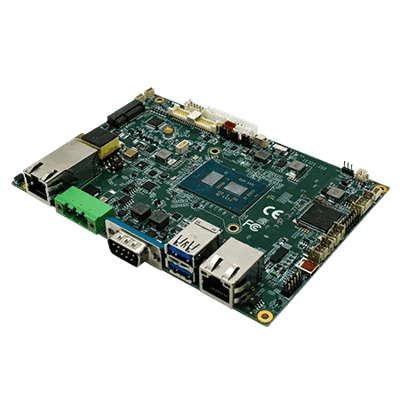

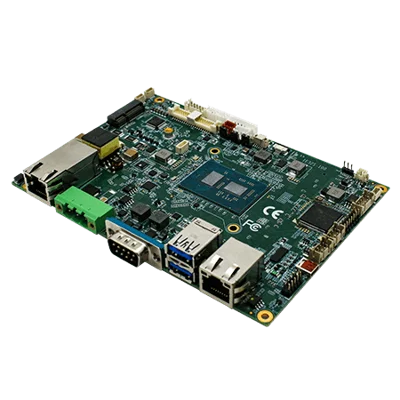

IntelR CeleronR N6211 x86 Embedded Motherboard
Vlastnosti:
- 3.5” Form Factor (146mm x 102mm / 5.7 x 4 inches)
- Intel® Celeron® Elkhart Lake N6211 Processor
- 1 x DDR4 SO-DIMM 3200 MHz, max. 16GB
- Intel® UHD Graphics 10th Gen
- 2 x 2.5 Gbps Ethernet, one with PoE function on
- 2 x USB 3.2 Gen 2×1, 1 x RS232/422/485, 1 x Micro HDMI(Optional)
- Support M.2 B-Key 2242 SATA III SSD, max. 512GB
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-Key SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |

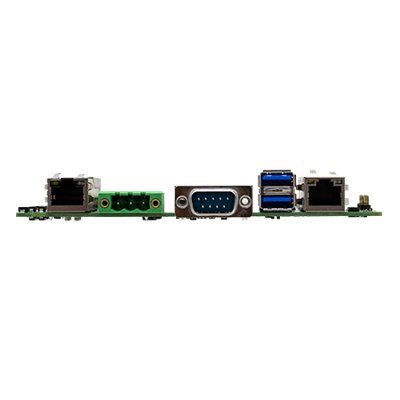

IO Ports
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x Micro HDMI (Optional) |
| Expansion Port | 1 x M.2 2242 B-Key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector,one with PoE(PD, 802.3 at)(Optional) |
Internal IO Ports
| Power input | 1 x 3pin Terminal Block |
| Power output | 1 x 2pin(1×2) red wafer for 5V DC out |
| USB | 2 x 8pin(2×4) for 4 x USB 2.0 1 x FPC connector(CN8) for touch screen |
| UART | 1 x 6pin(1×6) for UART |
| Display | 1 x 40pin DF13 connector for LVDS.Co-lay for eDP 1 x 40pin FPC connector Co-lay for LVDS(CON3) (Optional) |
| Backlight | 1 x 7pin(1×7) for panel backlight |
| DIDO | 1 x 14pin(2×7) for Digital input/output |
| VR | 1 x 5pin(1×5) MCU debug port |
| OSD | 1 x 10pin(2×5) for OSD control |
| Speaker | 2 x 2pin(1×2) for Speaker |
| Backup battery | 1 x 2pin(1×2) for RTC battery |
| Audio | 1 x 12pin(2×6) for Line in/Line out/ Mic in |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 146 x 102 mm |
Environment
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
Accessory
| Accessory | 1 x Installation Guide |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional) 1 x SATA Power cable (94HE08Z150E0) (Optional) 1 x COM cable (94G309E100E1) (Optional) 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional) 1 x 12V 84W Adapter (922D084W12V1) (Optional) 1 x Power cord (Varies by country) (Optional) 1 x CPU Heatspreader (98K000A000N2) (Optional) 1 x Membrane (98K000A000N1) (Optional) 2 x Speaker (612620000007) (Optional) |
Power
| Power Rating | 12V DC |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
