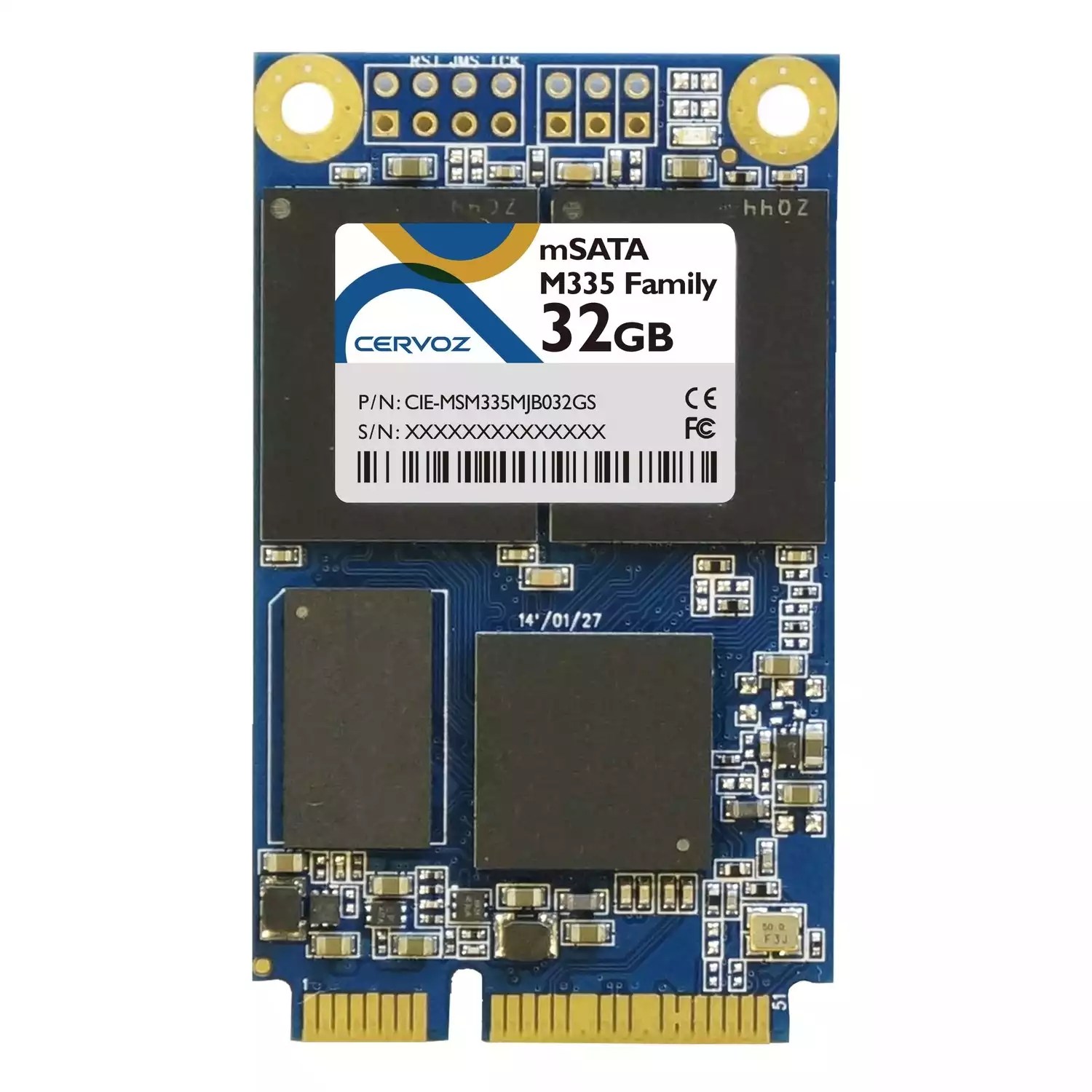

Cervoz Industrial mSATA Embedded Module M335 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA M335 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.
M335 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
M335 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
Features:
- Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
- MLC NAND flash memory
- Capacity: 32GB ~ 128GB
- With 16-bit wide DDR3 DRAM Buffer
- Operating as boot disk
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
- RoHS compliant
Specifications:
| Form Factor | mSATA |
| Interface | SATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s) |
| Connector | mSATA |
| NAND Flash Type | MLC |
| Capacity | 32GB/64GB/128GB |
| Sequential Read | up to 535MB/s |
| Sequential Write | up to 145MB/s |
| DDR3 DRAM Buffer | Included |
| ECC Scheme | up to 66bits / 1K Byte |
| MTBF | 2,000,000 hours |
| Terabyte Written (TBW) | 32GB : 31 64GB : 63 128GB : 125 |
| Low Power Management | DEVSLP mode DIPM/HIPM mode |
| Supply Voltage | +3.3V DC +/- 5% |
| Power Consumption | Active mode: < 685mW Idle mode: < 75mW DEVSLP mode: < 5mW |
| Dimension (LxWxH) | 50.95*30.00*3.90mm |
| Weight | 6.9 +/- 1g |
