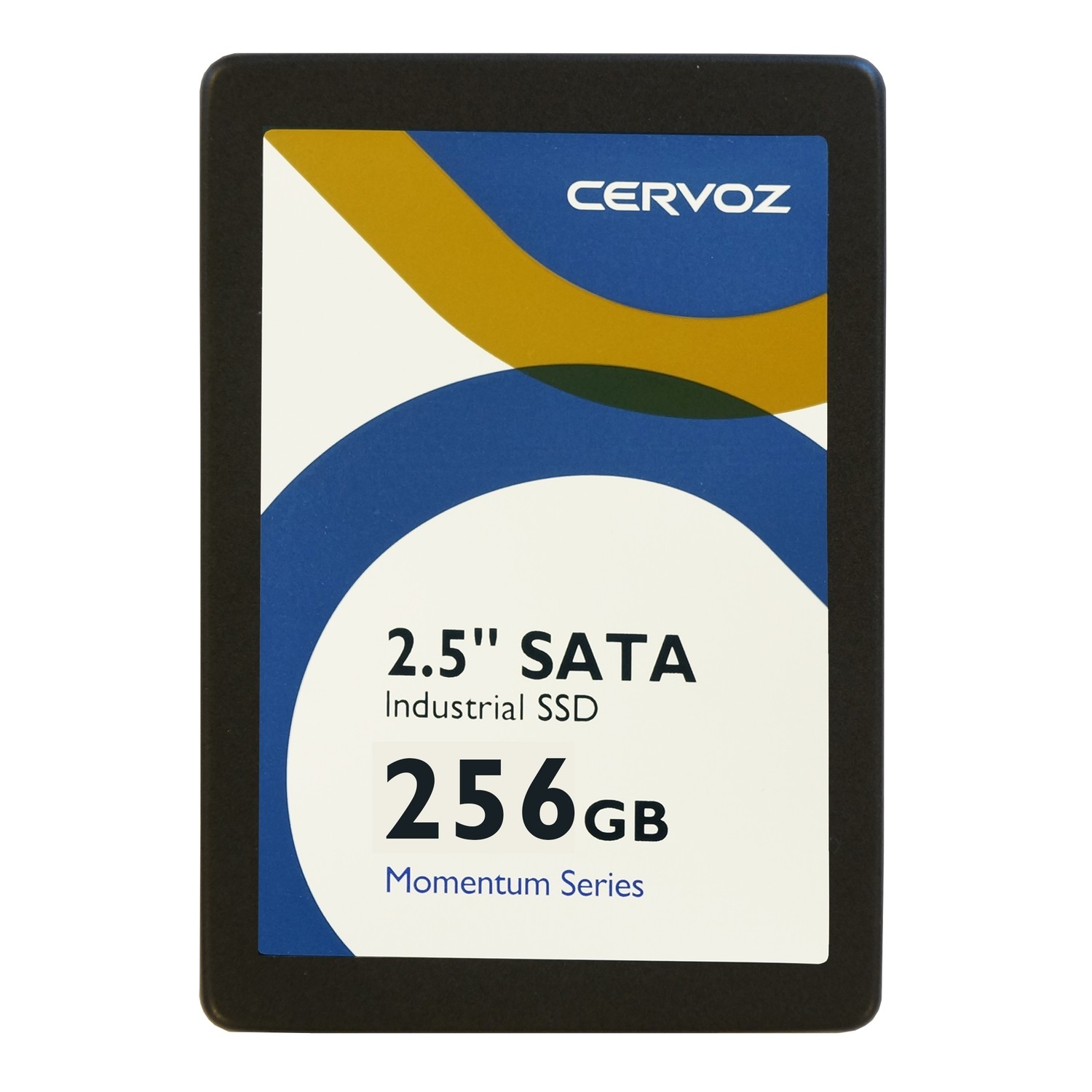

Cervoz Industrial 2.5″ SATA SSD M335 family is a high capacity Solid State Disk product that is in compliance with the 2.5″ form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards.
M335 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
M335 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
Features:
- Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
- MLC NAND flash memory
- Capacity: 32GB ~ 512GB
- With 16-bit wide DDR3 DRAM Buffer
- Operating as boot disk
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
- RoHS compliant
Specifications:
| Form Factor | 2.5 inch |
| Interface | SATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s) |
| Connector | SATA (7 + 15 pin) |
| NAND Flash Type | MLC |
| Capacity | 32GB/64GB/128GB/256GB/512GB |
| Sequential Read | up to 560MB/s |
| Sequential Write | up to 420MB/s |
| DDR3 DRAM Buffer | Included |
| ECC Scheme | up to 66bits / 1K Byte |
| MTBF | 2,000,000 hours |
| Terabyte Written (TBW) | 32GB : 31 64GB : 63 128GB : 125 256GB : 250 512GB : 500 |
| Low Power Management | DIPM / HIPM mode |
| Supply Voltage | +5V DC +/- 5% |
| Power Consumption | Active mode: < 2360mW Idle mode: < 60mW |
| Dimension (L x W x H) | 100.00*69.85*7.00mm |
| Weight | 61 +/- 1g |
