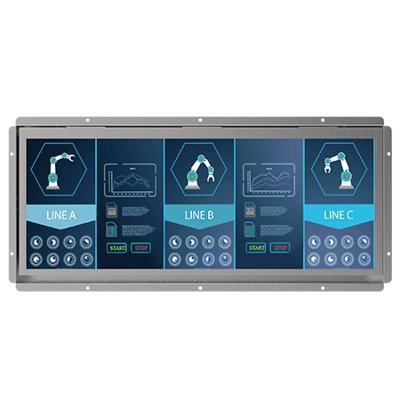

14.9" Open Frame Display
Vlastnosti:
- 14.9” 1920 x 720 Resolution
- VGA input and HDMI input
- Open frame
Display
| Touch / Glass | Protection Glass (Optional) |
| Resolution | 1920×720 |
| Size | 14.9 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 950.0 nits |
| Display Color | 16.7M Colors |
| View Angles | 85,85,85,85 |
| Active Area | 355.68×133.38 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen (Optional) |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
| Dimension | 391.1 x 178.6 x 56.2 mm |
| Mounting | Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC in 24V DC in (optional) |
Control

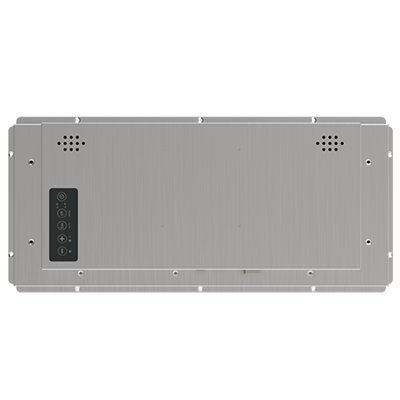

| Button | 5 Keys: – , + , Power , Esc , Enter |
