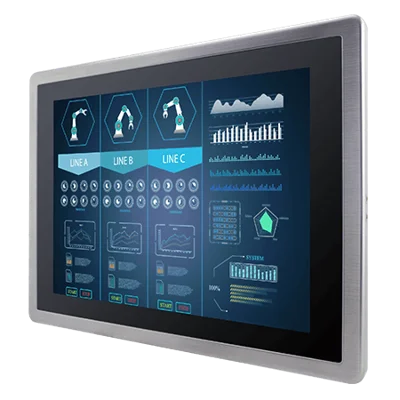

R15L600-65C3, 15-inch IP65 Stainless Chassis Display
Features
Technical Description
| Model Name | R15L600-65C3 |
| Panel Size | 15″ |
| Active Display Area (mm) | 304.1 (H) x 228.1 (V) |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Resolution | 1024×768 |
| Panel Brightness | 250 (typ.) |
| Contrast Ratio | 700:1 (typ.) |
| Viewing Angle | -80~80(H);-70~70(V) |
| Number of Colors | 16.2M |
| Optional Touch Screen | Resistive,Capacitive |
Power Information
| Power Source | 12V DC in, with External AC-DC Adapter(100~240V) |
| Power Consumption | 25 W typical, normal operation |
| Power Input | VESA DPMS Compliant |
Display Signals
| Plug & Play | VESA DDC 1/2B |
| Video Input | Yes |
