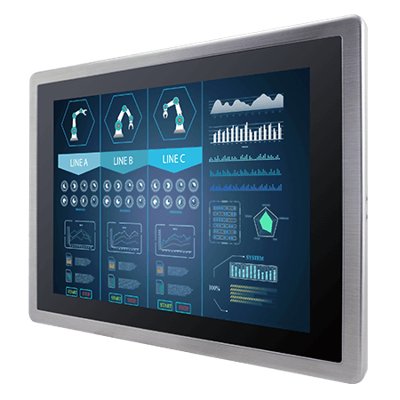

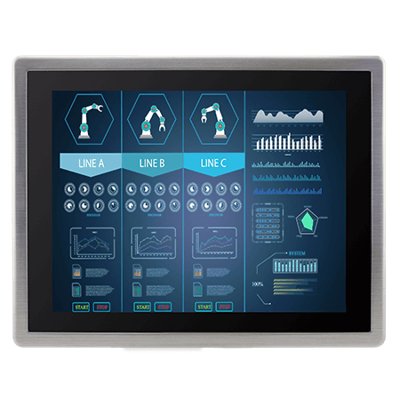

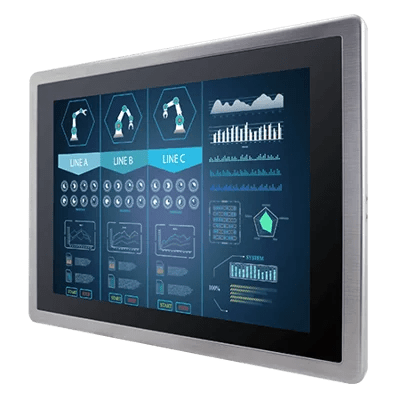

15″ IP65 Stainless PCAP Chassis Display
Vlastnosti:
- IP65 compliant
- Robust and fanless design for reliable operation
- Fanless Cooling System and Ultra Low power consumption
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Special Flat Touch Design easy to maintain
- Projective Capacitive Touch
- Optical bonding (optional)
Display
| Resolution | 1024×768 |
| Size | 15.0 inches |
| Contrast Ratio | 2500:1 |
| Panel Brightness | 500.0 nits |
| Display Color | 16.7M Colors |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
Mechanical
| Dimension | 396 x 310 x 49 mm |
| Weight | 5.7 kg |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x M12 waterproof connector for 12V DC |
| USB Port | 1x M12 waterproof connector for touch screen control |
| Serial Port | 1 x M12 type connector for RS232 remote control (Optional) |
| Video | 1x M12 type connector for VGA input |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
| Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button |
Accessory
| Accessory | External VGA cable with waterproof connector Waterproof caps VESA screws 100~240V AC to DC Adapter with waterproof connector Power Cord |
| Optional Accessory | External COM cable with waterproof connector for remote control (Optional) |
Power
| Power Rating | 12V DC (M12 type) |
