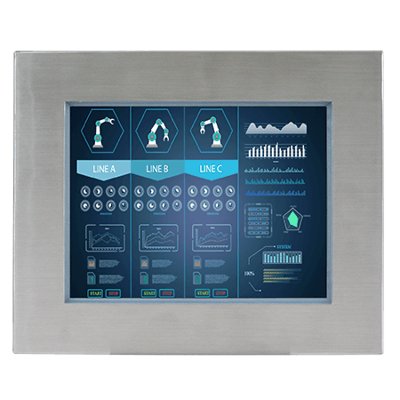

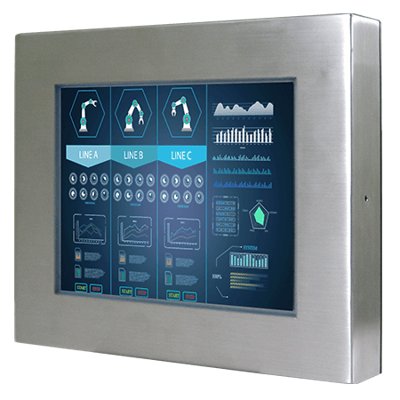

10.4" IP65 Stainless Resistive Chassis Display
Vlastnosti:
- 10.4", 1024 x 768
- Support VESA / YOKE mount
- Chassis
- Stainless housing SUS 316 / AISI 316
- Full IP65 waterproof and dustproof
- Optical bonding (optional)
Display
| Resolution | 1024×768 |
| Size | 10.4 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350 nits |
| Display Color | 16.2M Colors |
| View Angles | 88,88,88,88 |
| Active Area | 210.4×157.8 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
Mechanical
| Dimension | 289 x 246 x 49.9 mm |
| Mounting | VESA Mount Yoke Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x M12 waterproof connector for 12V DC |
| USB Port | 1x M12 waterproof connector for touch screen control (Optional) |
| Serial Port | 1 x M12 waterproof connector for touch screen control (Optional) |
| Video | 1x M12 type connector for VGA input 1x waterproof DVI input (Optional) 1x waterproof connector for HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
| Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button |
Accessory
| Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External VGA cable with waterproof connector Waterproof caps Manual VESA screws |
| Optional Accessory | Yoke mount stand (Optional) External HDMI cable with waterproof connector (Optional) External DVI cable with waterproof connector (Optional) External USB cable with waterproof connector for touchscreen control (Optional) External RS232 cable with waterproof connector for touchscreen control (Optional) |
Power
| Power Rating | 12V DC (M12 type) |
