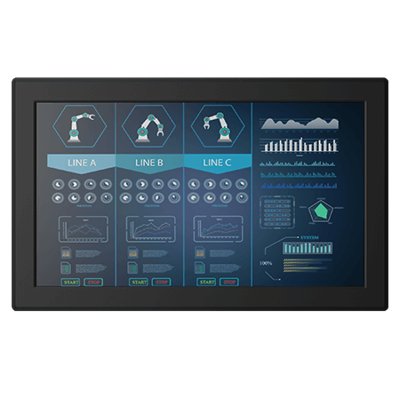

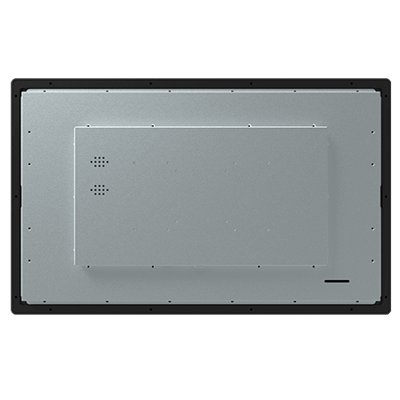

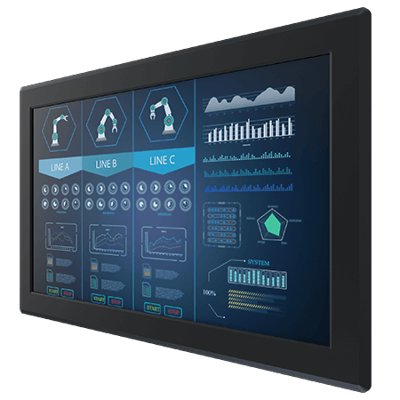

23.8" Resistive Touch Panel Mount Display
Vlastnosti:
- Sunlight readable with high brightness solution
- Support panel mount
- Operating temperature:-10~60℃
- Optional operating temperature : -25~60℃ with heater solution
- Support resistive touch
- Optional solar radiation protection with UV film for directed sunlight environment
Display
| Resolution | 1920×1080 |
| Size | 23.8 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000 nits |
| Display Color | 16.7M Colors |
| View Angles | 88,88,88,88 |
| Active Area | 527.04×296.46 mm |
| Touch / Glass | Resistive Touch Screen Protection Glass w/o Touch Function (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
| Dimension | 606 x 376 x 65 mm |
| Weight | 8.5 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Cut out | 560 x 330mm |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 24V DC in |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
