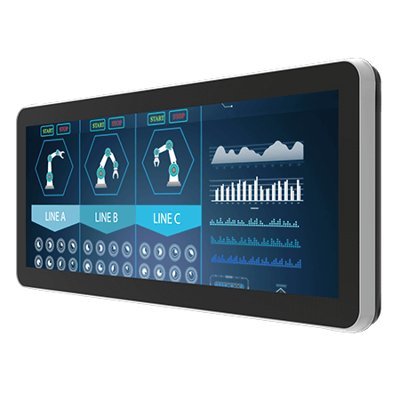

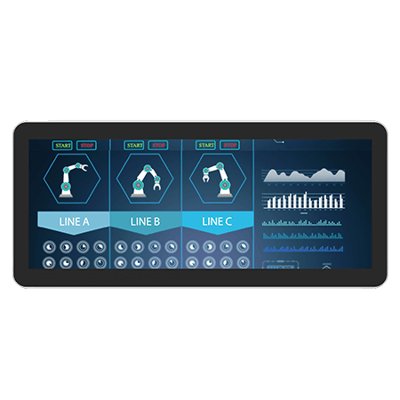

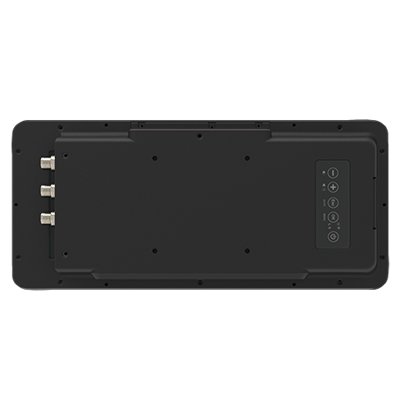

12.3" G-WIN GS Series Display
Vlastnosti:
- 12.3” 1920 x 720 panel
- Projected Capacitive Multi-Touch (PCAP)
- Full IP65 Water and Dust Proof
- VGA input and USB port for touch
- M12 Type Connectors
- Compliant with MIL-STD-810F/G for Shock / Vibration
Display
Resolution | 1920×720 |
Size | 12.3 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 1000.0 nits |
Display Color | 16.7M Colors |
View Angles | 88,88,88,88 |
Type | Projected Capacitive Multi Touch |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -15~55°C |
Storage Temperature | -30°C to 60°C |
Shock | 40g for 11ms |
Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
IP rating | IP65, Dustproof and Waterproof |
Certification
Certification | CE, FCC Compliant with MIL-STD-810F/G for vibration / shock |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA |
Mechanical
Dimension | 325.02 x 146.5 x 44.9 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | Quick Start Guide(Hardcopy) AC Adapter(For 7'' Display only) M12 Power Cable(Not Supplied with 7'' Display) VGA Cable USB for Touch Cable I/O Protective Cap x 3 |
Power
Power Rating | 9-36V DC (M12 type) |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
