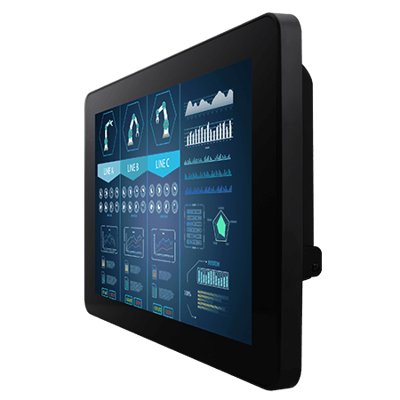

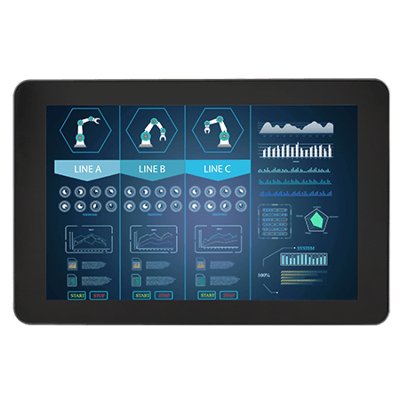

10.1" PoE Chassis Display
Vlastnosti:
- 10.1” 1280 x 800 Resolution PoE Chassis Display
- Projected Capacitive Multi-Touch (P-Cap)
- VGA input and HDMI input
- USB port for touch
- Stylish and elegant design
- Supports PoE
- Front IP65
Display
Resolution | 1280×800 |
Size | 10.1 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 350 nits |
Display Color | 16.7M Colors |
View Angles | 85,85,85,85 |
Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) Anti-glare Coating (Optional) |
Environment
Operating Humidity | 10% to 90% (non-condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -10~60°C |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x HDMI (Optional) |
Audio | 1 x Speaker (Optional) |
LAN | 1 x PoE for Power Input |
Mechanical
Dimension | 264.57 x 173.29 x 35.7 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Aluminum |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x USB Cable for Touch 1 x VGA Cable 1 x HDMI Cable |
Power
POE | Power Device (PD) follows IEEE 802.3at (25 W), IEEE 802.3af (15 W) |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
