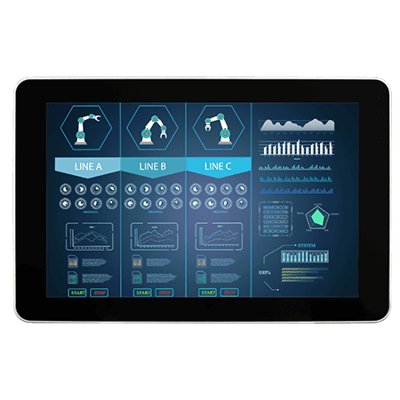

10.1" USB Type-C Chassis Display
Vlastnosti:
- 10.1", 1280 x 800
- USB Type-C connector
- Chassis
- VESA mount
- PCAP touch
- Front IP65
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350 nits 1000 nits(Optional) |
| Display Color | 16.7M Colors |
| View Angles | 85,85,85,85 |
| Active Area | 216.96 x135.6 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) Anti-glare Coating (Optional) |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB Type-C Connector |
| Audio | 1 x Speaker (Optional) |
Mechanical
| Dimension | 263.3 x 172 x 40.2 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Aluminum back cover |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual |
| Optional Accessory | Lockable USB-C to Standard USB-C Cable (Optional) Waterproof USB-C to Standard USB-C Cable (Optional) Dual-side Lockable USB Type-C Cable (Optional) |
Power
| Power Rating | USB Type-C Alt mode (5V/3A) |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
