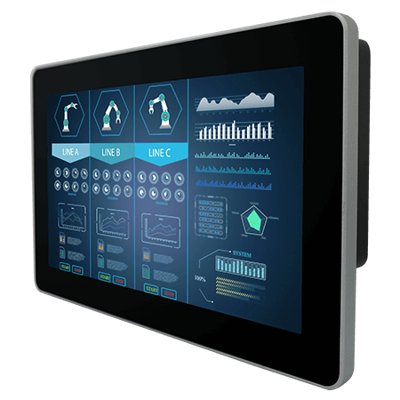

10.1" G-WIN GC Series Front IP65 PCAP Display
Vlastnosti:
- 10.1” 1280 x 800 Resolution Front IP65 PCAP Display
- Projected Capacitive Multi-Touch (P-Cap)
- Front IP65 Water and Dust Proof
- VGA input and variety of optional connectors
- USB port for touch
- Stylish and elegant design
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350.0 nits |
| Display Color | 16.7M Colors |
| View Angles | 85,85,85,85 |
| Active Area | 216.96×135.6 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | 1 x Speaker (Optional) |
Mechanical
| Dimension | 263.3 x 172 x 40.2 mm |
| Weight | 1.3 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Aluminum back cover |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC in 24V DC in (optional) |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
