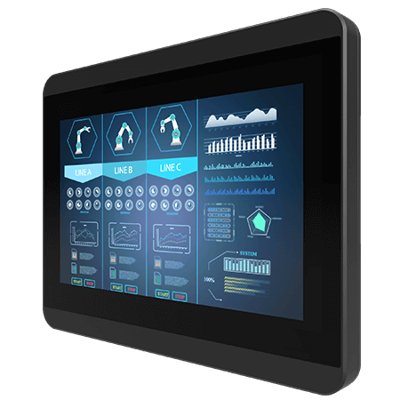

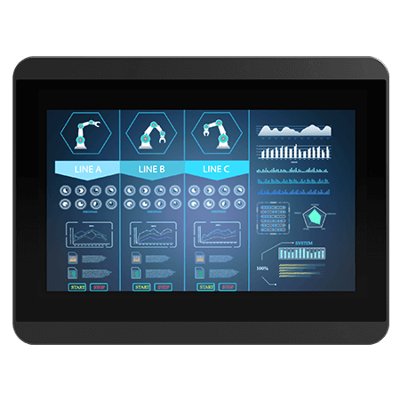

7" PCAP Touch Chassis Display
Vlastnosti:
- Sunlight readable with high brightness solution
- Support VESA mount
- Support PCAP touch
- Operating temperature:-10~60℃
- Optional operating temperature : -25~60℃ with heater solution
- Optional solar radiation protection with UV film for directed sunlight environment
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| Display Color | 16.2M Colors |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | 1 x Speaker (Optional) |
Mechanical
| Dimension | 189 x 145.4 x 47.8 mm |

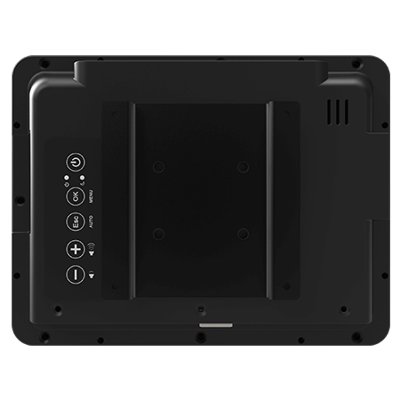

| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC in |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
