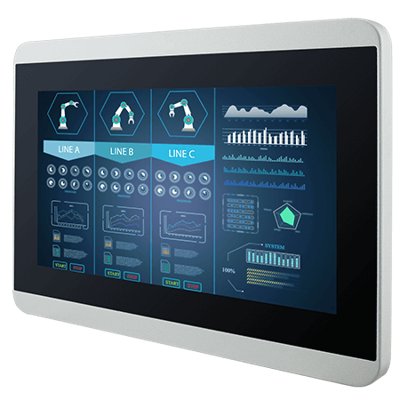

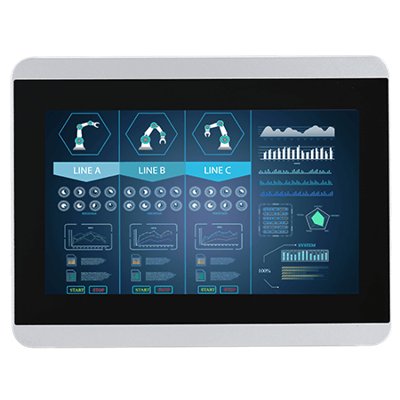

7" G-WIN GS Series High Brightness Display
Vlastnosti:
- 7” 1024 x 600 Resolution
- Projected Capacitive Multi-Touch (PCAP)
- Full IP65 Water and Dust Proof
- M12 Waterproof Connectors
- Fully rugged elegant, edge-to-edge design
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| Display Color | 16.2M Colors |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
Certification
| Certification | CE, FCC Compliant with MIL-STD-810F/G for vibration / shock |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA |
Mechanical
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Weight | 1.13 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter(For 7'' Display only) M12 Power Cable(Not Supplied with 7'' Display) VGA Cable USB for Touch Cable I/O Protective Cap x 3 |
Power
| Power Rating | 12V DC (M12 type) |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
