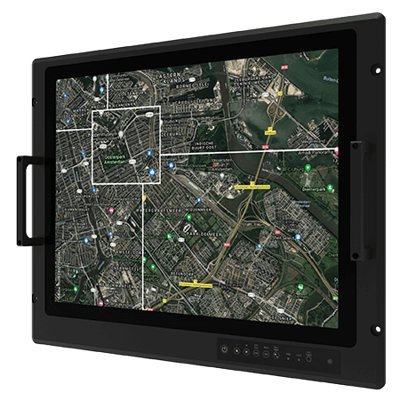

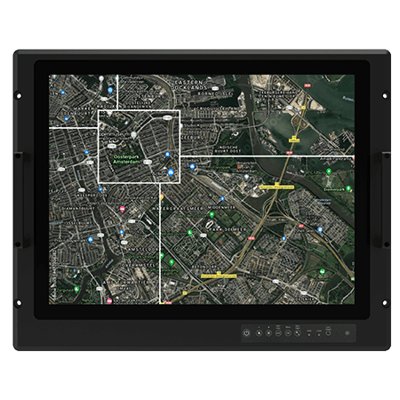

21.3" PCAP Rack Mount Defence Display
Vlastnosti:
- 21.3” 1600×1200 resolution,PCAP Rack Mount Defence Display
- PCAP multitouch screen
- Compliant MILSTD 810G/ MILSTD 461E
- Rack mount mechanical design, supports VESA mount
- Defencegrade power connector (MILDTL38999/1)
- AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
- Convenient onscreen display controls
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
| Resolution | 1600×1200 |
| Size | 21.3 inches |
| Contrast Ratio | 1800:1 |
| Panel Brightness | 1000 nits |
| Display Color | 16.8M Colors |
| View Angles | 89,89,89,89 |
| Active Area | 432×324 mm |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
Compliance
| MIL-STD 461E/F | RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810F/G | Vibration Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 5 x BNC (R,G,B,H,V) 1 x DVI-D |
Mechanical
| Dimension | 539.1 x 430.3 x 71.4 mm |
| Mounting | Rack Mount/ VESA Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MIL-DTL-38999/1 1 x VGA Cable 1 x DVI Cable 1 x VGA to 5 BNC Shielding Cable |
Power
| Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
| Button | 7 key: Power Decrease Increase Exit/ Auto Menu Day/ Night Lock/ Unlock |
