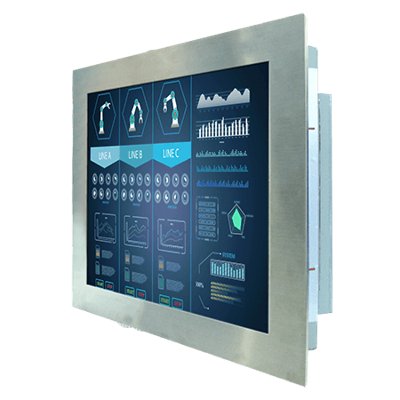

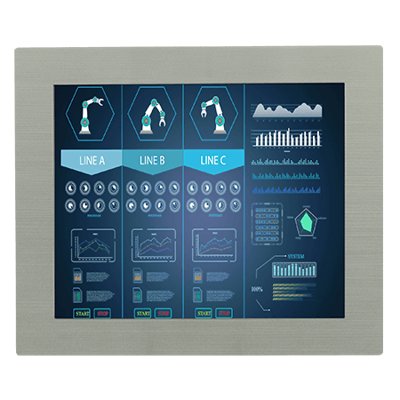

15" Stainless Panel Mount Display
Vlastnosti:
- 15", 1024 x 768
- VGA and HDMI input
- Panel mount
- VESA mount
Display
| Resolution | 1024×768 |
| Size | 15 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 300 nits |
| Display Color | 16.2M Colors |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
Mechanical
| Dimension | 396 x 316 x 56.8 mm |
| Mounting | Panel mount VESA Mount |
| Enclosure | Stainless front bezel |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input 1x HDMI input (Optional) 1x DVI input (Optional) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord External USB Cable For Touchscreen Control External VGA Cable External HDMI Cable VESA Screws |
| Optional Accessory | External DVI Cable (Optional) |
Power
| Power Rating | 12V DC |
