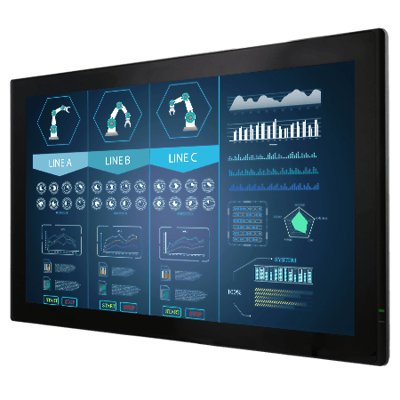

32" SDI Chassis Display
Vlastnosti:
- 32", 1920 x 1080,SDI Chassis Display
- 3G-SDI in, 3G-SDI out, HDMI, VGA, two CVBS (BNC)
- Chassis
- VESA mount
Display
Resolution | 1920×1080 |
Size | 32 inches |
Contrast Ratio | 4000:1 |
Panel Brightness | 400 nits |
Display Color | 16.7M Colors |
View Angles | 89,89,89,89 |
Active Area | 698.4 x 392.85 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
Operating Humidity | 10% to 90% (non-condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -10~60°C |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA In 2 x CVBS 1 x SDI in 1 x SDI out 1 x HDMI (Optional) |
Audio | 2 x Speaker (Optional) |
Mechanical
Dimension | 798.94 x 477.94 x 64.7 mm |
Mounting | VESA Mount |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual(Hardcopy) 110~240V AC Power Adapter Power Cord VGA Cable HDMI Cable SDI Cable CVBS cable |
Power
Power Rating | 12V DC input |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
