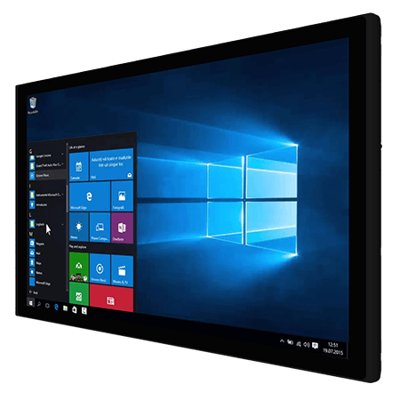

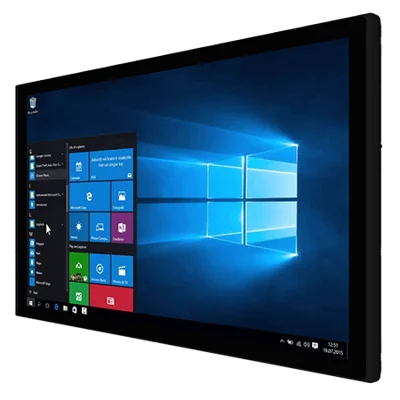

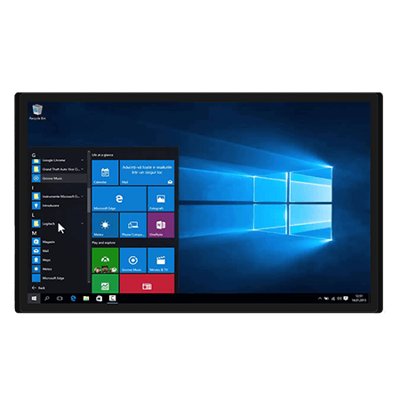

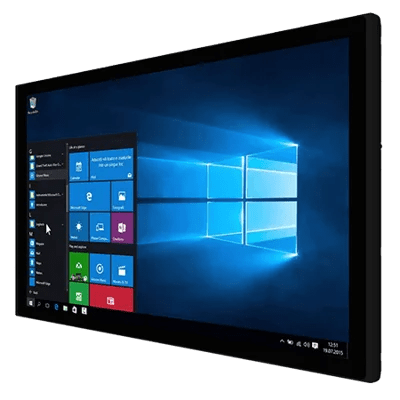

32″ IntelR Core i5-7200U Standalone Panel PC HMI
Vlastnosti:
- 32” 1920 x 1080 with PCAP touchscreen
- High computing performance with 7th Generation (Kaby Lake) Intel® Core™ i5-7200U 2.5GHz processor (Optional Core i7-7500U 2.7 GHz)
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 2 x LAN, 1 x COM, 2 x USB 3.0, 1 x HDMI
Display
| Resolution | 1920×1080 |
| Size | 32 inches |
| Contrast Ratio | 4000:1 |
| Panel Brightness | 400 nits |
| View Angles | 89,89,89,89 |
| Active Area | 698.4 x 392.85 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel® Core™ i5-7200U (3M Cache, up to 3.10 GHz, BGA onboard CPU) Intel® Core™ i5-7300U (3M Cache, up to 3.50 GHz, BGA onboard CPU) |
| Memory | 1 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 799 x 478 x 63.7 mm |
| Mounting | VESA Mount (100 x 200mm) (200 x 200mm) |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS-232/422/485 |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| LAN | 2 x RJ 45-10/100/1000 Mbps |
Accessory
| Accessory | Driver CD Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord |
Power
| Power Rating | 12V DC in 9-36V DC in (Optional) |
Control
| Button | 5 key: Power Up Down Left Right |
