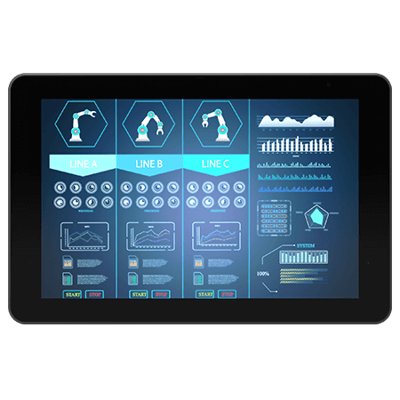

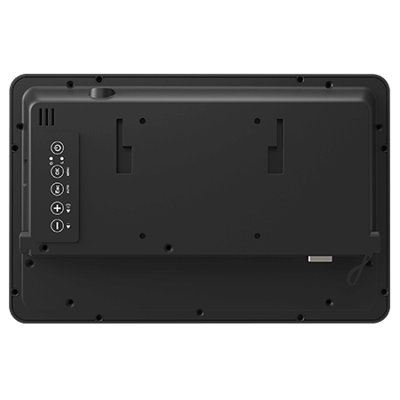

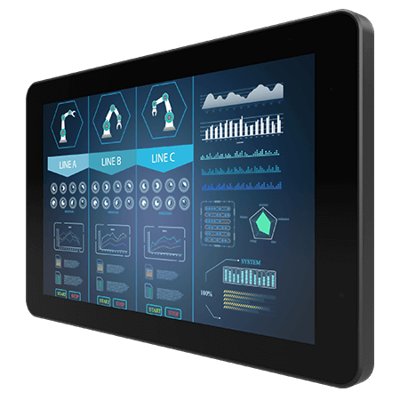

10.1" PCAP Touch Chassis Display
Vlastnosti:
- Sunlight readable with high brightness solution
- Support VESA mount
- Support PCAP touch
- Operating temperature:-10~60℃
- Optional operating temperature : -25~60℃ with heater solution
- Optional solar radiation protection with UV film for directed sunlight environment
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 1000 nits |
| Display Color | 16.7M Colors |
| View Angles | 85,85,85,85 |
| Active Area | 216.96×135.6 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | 1 x Speaker (Optional) |
Mechanical
| Dimension | 264.6x 173.3 x 35.7 mm |
| Weight | 1.3 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Aluminum back cover |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC in |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
