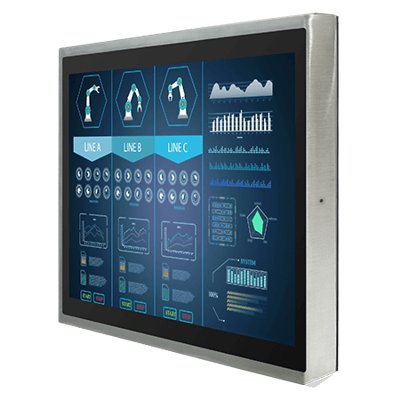

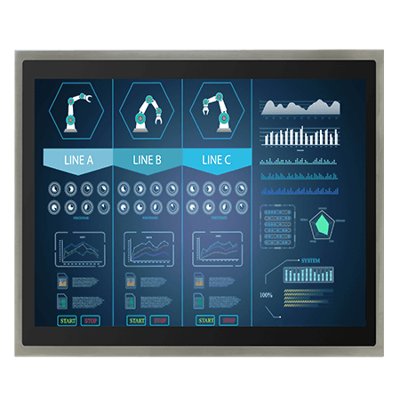

17" IP65 Stainless PCAP Chassis Display
Vlastnosti:
- 17", 1280 x 1024
- Chassis
- Support VESA / YOKE mount
- Stainless housing SUS 316 / AISI 316
- Full IP65 waterproof and dustproof
- Optical bonding (optional)
Display
Resolution | 1280×1024 |
Size | 17 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350 nits |
Display Color | 16.2M Colors |
View Angles | 85,85,80,80 |
Active Area | 337.920×270.336 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
Mechanical
Dimension | 412 x 344 x 61.3 mm |
Weight | VESA Mount Yoke Mount (Optional) |
Mounting | VESA Mount Yoke Mount |
Enclosure | Stainless Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -20°C to 60°C |
IP rating | IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x M12 waterproof connector for touch screen control |
Video | 1x M12 type connector for VGA input 1x waterproof connector for DVI input (Optional) 1x waterproof connector for HDMI input (Optional) |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button |
Accessory
Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector for touchscreen control External VGA cable with waterproof connector Waterproof caps Manual VESA screws |
Optional Accessory | External HDMI cable with waterproof connector (Optional) External DVI cable with waterproof connector (Optional) |
Power
Power Rating | 12V DC (M12 type) |
