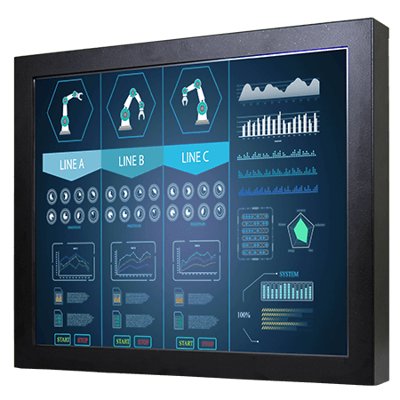

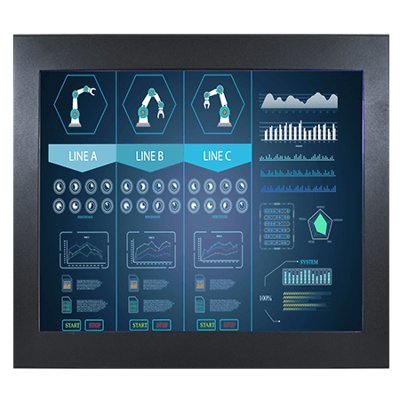

15" SDI Chassis Display
Vlastnosti:
- 15", 1024 x 768
- G-SDI in, 3G-SDI out, HDMI, VGA, two CVBS (BNC)
- Chassis
- VESA mount
Display
| Resolution | 1024×768 |
| Size | 15.0 inches |
| Contrast Ratio | 2500:1 |
| Panel Brightness | 500.0 nits |
| Display Color | 16.7M Colors |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding with Panel |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA In 2 x CVBS 1 x SDI in 1 x SDI out 1 x HDMI (Optional) |
| Audio | 2 x Speaker (Optional) |
Mechanical
| Dimension | 350.2 x 274.2 x 35 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual(Hardcopy) Black Screw Bolts 110~240V AC Power Adapter Power Cord VGA Cable HDMI Cable SDI Cable CVBS cable |
Power
| Power Rating | 12V DC in 24V DC in (optional) |
Control
| Button | 8 key: Power Up Down Menu/Enter Left Right Exit Auto |
