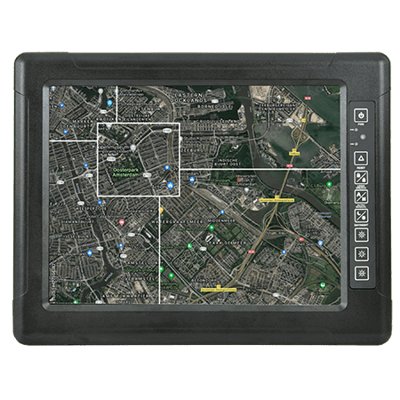

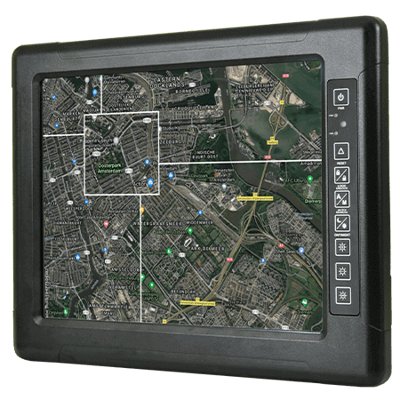

15" G-WIN Defence Display
Vlastnosti:
- 15" 1024 x 768 resolution
- Compliant MIL-STD 810G/ MIL-STD 461E
- Fanless design and efficient heat dissipation
- Supports VESA mount
- AR protection glass
- Defence-grade connectors
- Convenient on-screen display controls
- Power input 12 V DC defence-grade connector (Optional 9-36 V DC wide range )
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2500:1 |
Panel Brightness | 1000.0 nits |
Display Color | 16.7M Colors |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C |
Shock | Operating:30g for 18ms |
Vibration | Operating: 1.60/1.96/2.18 g rms for XYZ / 5-500Hz |
Compliance
MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810G | Vibration Method 514.6 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen(Defence Grade) (Optional) |
Serial Port | 1 x RS232 for Touch Screen(Defence Grade) (Optional) |
Video | 1 x VGA(Defence Grade) |
Mechanical
Dimension | 398 x 308 x 58 mm |
Mounting | VESA Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual Touch Driver CD Open Wire Cable AC Adapter Power Cord |
Power
Power Rating | 12V DC (MIL-DTL-38999/1 connector) 9V to 36V wide range (Optional) |
Control
Button | 8 key: Power Menu Auto Volume Up/ Swap Volume Down/ PIP Brightness Up Brightness Down LED Adjustment |
