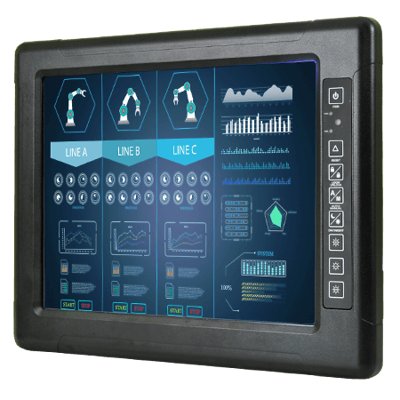

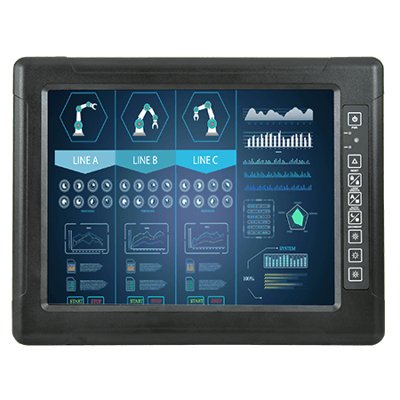

15" G-WIN IP67 Series Display
Vlastnosti:
- High Quality 15" XGA Panel, 1024 x 768 resolution, 1000 nits
- Full IP67 Dust Water-proof Protection
- Aluminum Housing with Anti-Corrosion Treatments
- Built-in ambient Light sensor
- Optical Bonding with Anti Moisture Treatments
- Anti-Shock and Vibration Standard according to IEC60068-2-27
- 5 Wire Resistive Touchscreen / Anti-Reflective Protection Glass
- 9V ~ 36V DC Isolation Wide Range Power Input
- Compliance with EN50155
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2000:1 |
Panel Brightness | 300.0 nits |
Display Color | 16.2M Colors |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Resistive Touch Screen Bonding With Panel Protection Glass Without touch function (Optional) |
Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
Dimension | 398 x 308 x 58 mm |
Weight | 4.2 kg |
Mounting | VESA Mount Yoke Mount |
Enclosure | Aluminum Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | -10°C to 55°C -40°C to 70°C (with intelligent heater) |
Storage Temperature | -30°C to 70°C |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | IP67 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x M12 waterproof connector for 9~36V DC |
USB Port | 1x M12 type connector for Touchscreen via USB signal |
Serial Port | 1 x M12 type connector for Touchscreen via RS232 signal (Optional) |
Video | 1x M12 type connector for VGA input 1x M21 type connector for HDMI input (Optional) |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button |
Accessory
Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External VGA cable with waterproof connector Waterproof caps VESA screws |
Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC 50W Adapter with power cord (Optional) External COM cable with waterproof connector (Optional) External HDMI cable with waterproof connector (Optional) |
