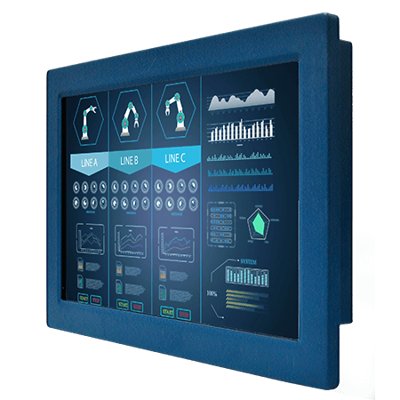

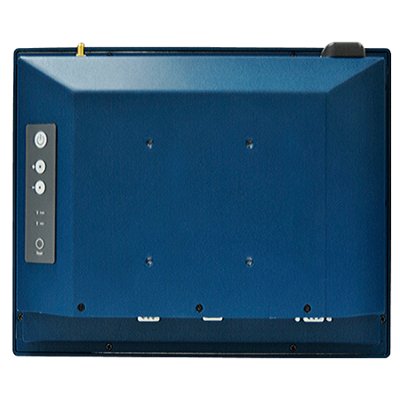

12.1" G-WIN VM Series Display
Vlastnosti:
- High Quality 12.1'' panel, 1024 x 768 resolution, 500 nits
- 5 Wire resistive touch screen
- -10 ~ +55°C Wide Range Operating Temperature
- Anti-Corrosion housing with Fanless Design
- 9V ~ 36V DC Isolation Wide Range Power Input
Display
| Resolution | 1024×768 |
| Size | 12.1 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 500.0 nits |
| Display Color | 16.2M Colors |
| View Angles | 89,89,89,89 |
| Active Area | 245.76×184.32 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
Mechanical
| Dimension | 307.2 x 245 x 43.9 mm |
| Weight | 3.1 kg |
| Mounting | VESA Mount Yoke Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 10~60V DC, 3-Pin Terminal Block |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input 1x HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
| Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x Menu button |
Accessory
| Accessory | Open Wire Cable with terminal block connector External VGA cable VESA screws |
| Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC 50W Adapter with power cord (Optional) External USB/COM cable for touchscreen control (Optional) External HDMI cable (Optional) |
